Field equipment, organized for the work.

Custom contents · Pre-configured

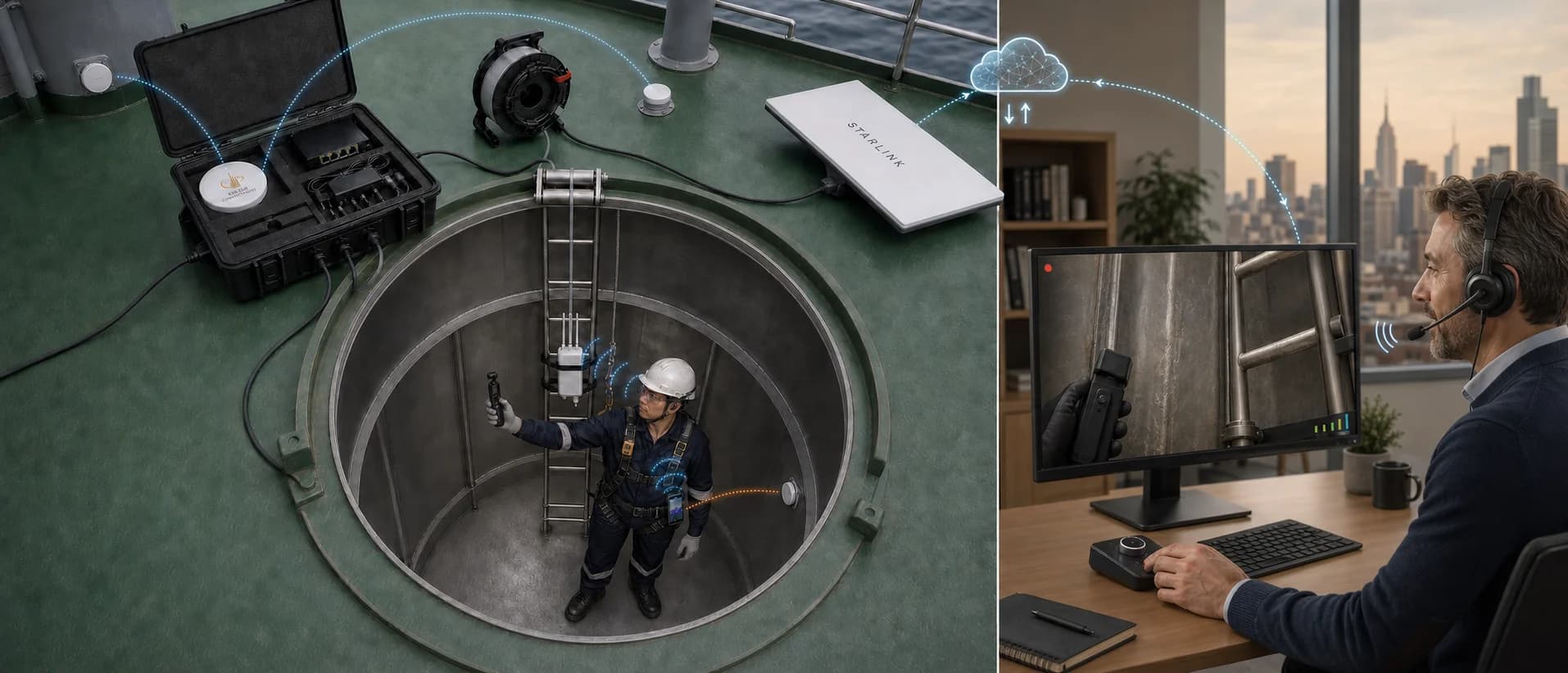

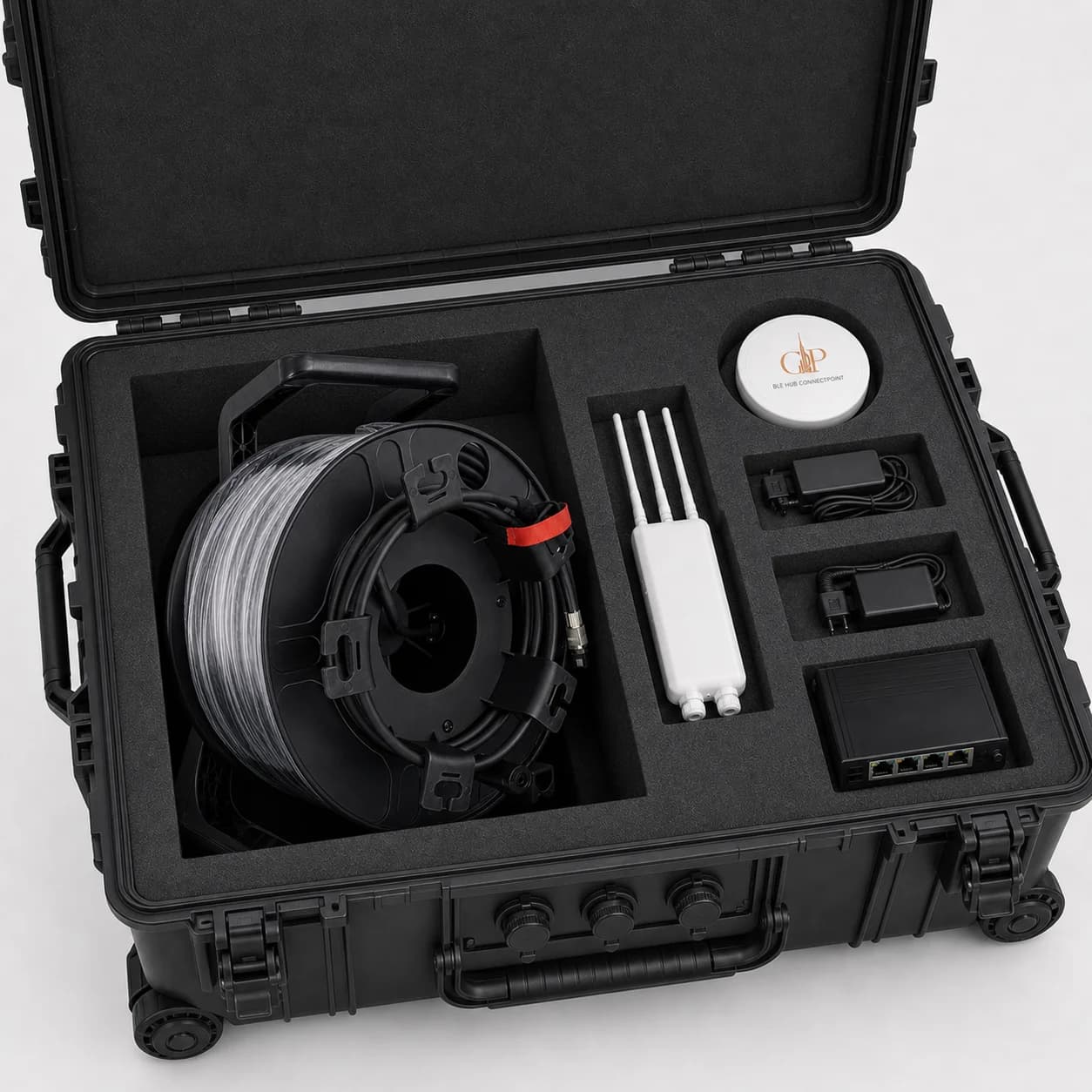

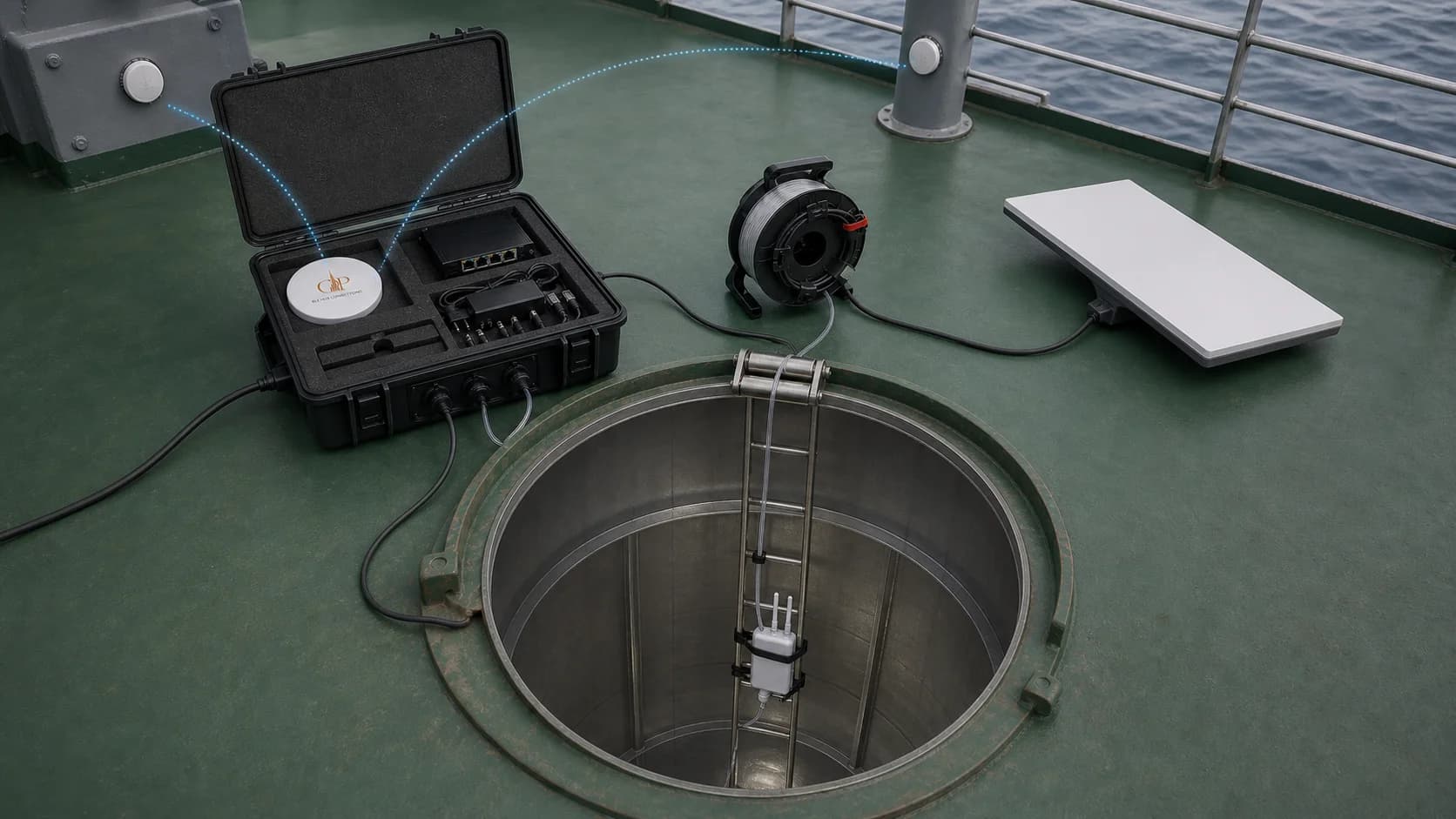

ConnectPoint Tank Inspection Case

Pre-configured rugged case built around customer-selected or customer-owned inspection and networking hardware.

• Custom Pelican case and foam insert from ConnectPoint
• Contents locked to customer's approved equipment list
• ConnectPoint phone, app and Starlink setup when selected

Images represent sample configurations. They do not guarantee uptime, system integration, location certification, safe work procedures or maritime field qualification.

Starlink Setup · Pre-configured

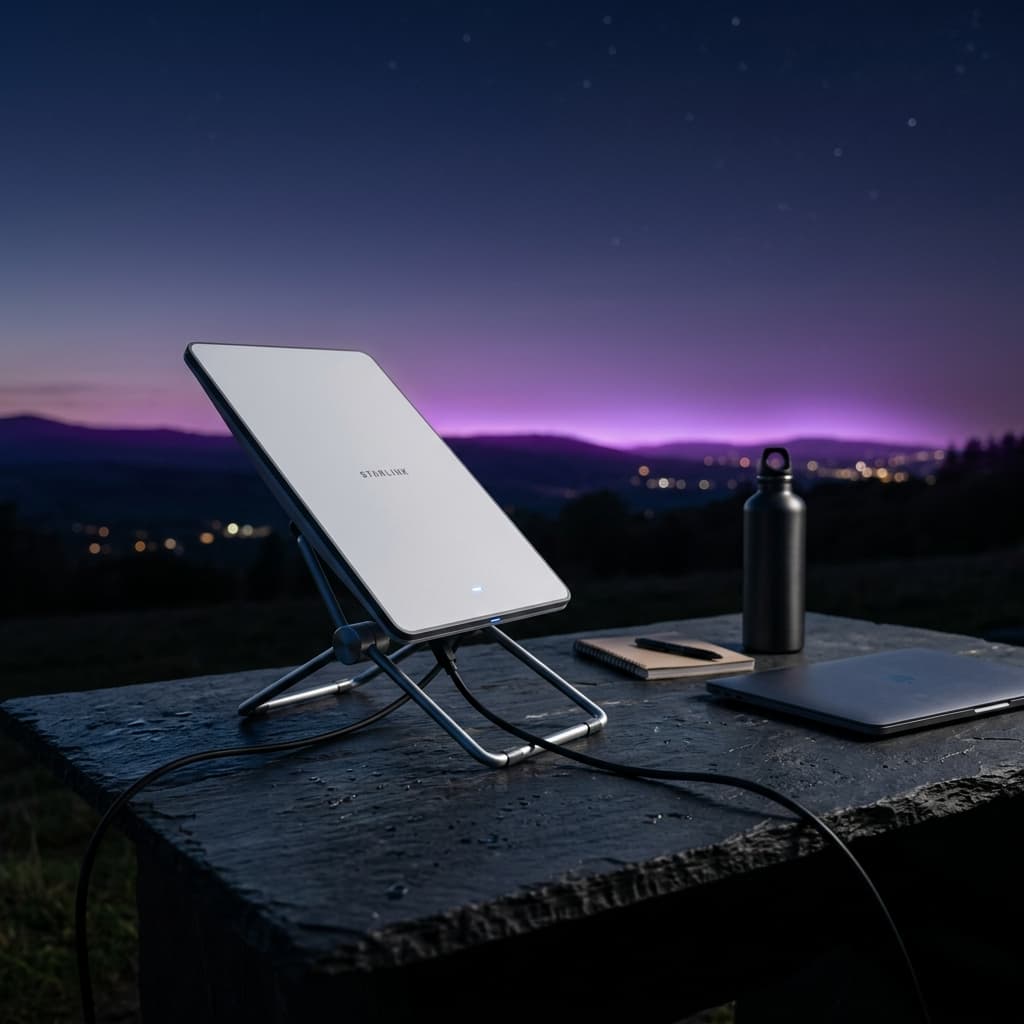

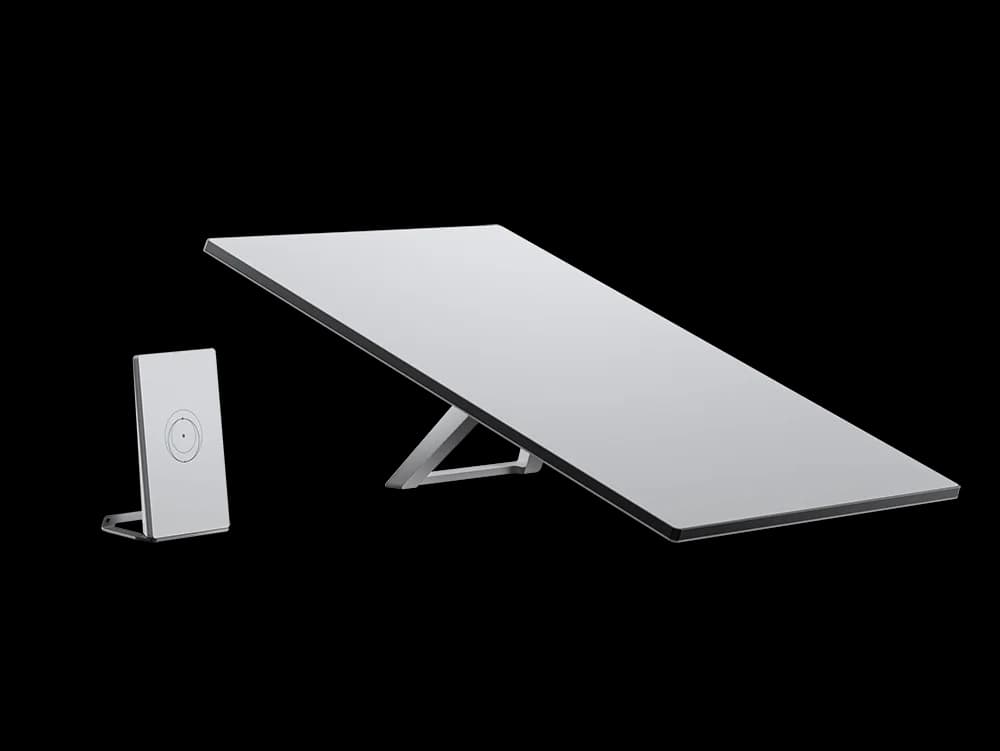

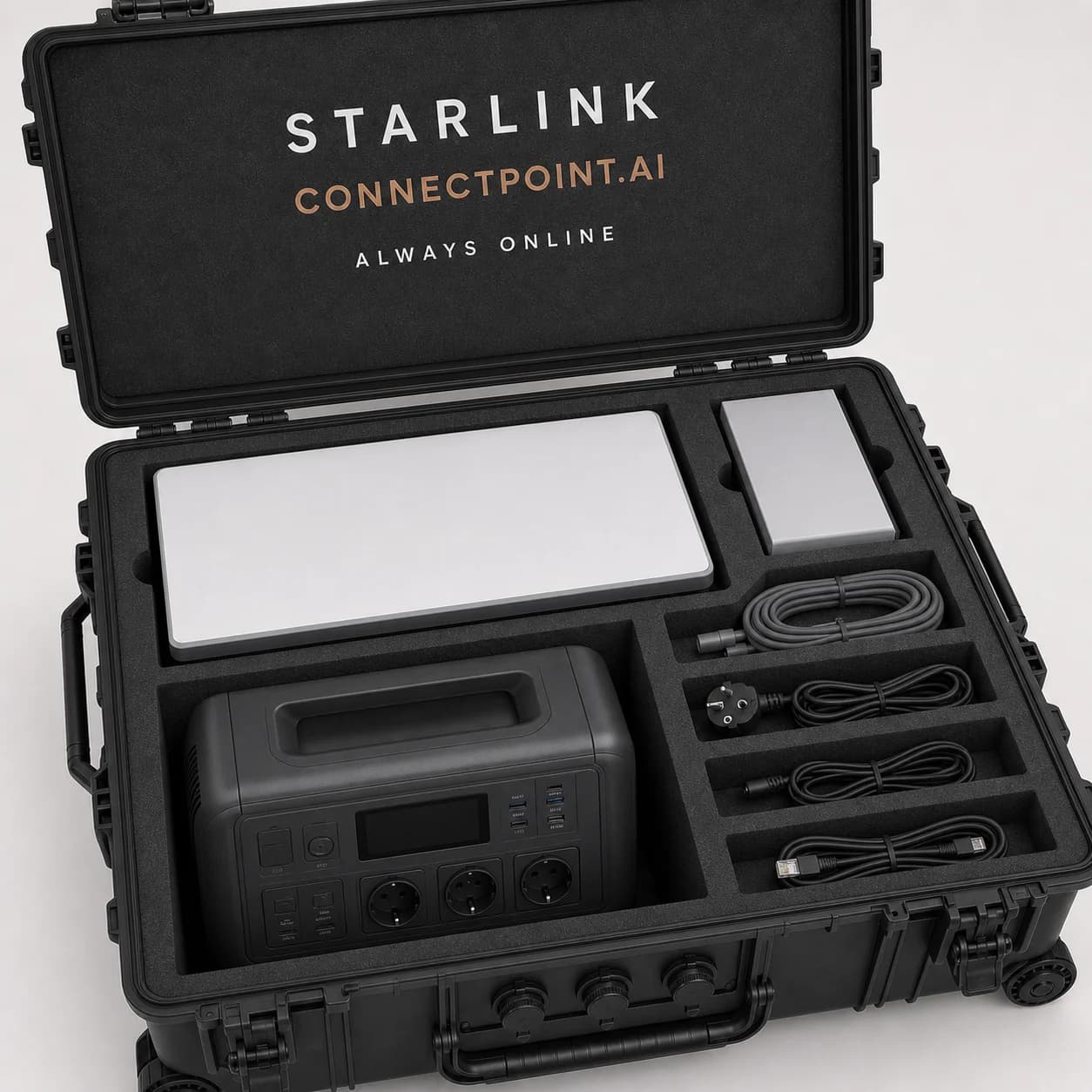

ConnectPoint Starlink Case

ConnectPoint delivers a turn-key fitted case with a complete Starlink setup when included in the selected configuration.

• Custom foam fit-out based on approved hardware list
• Terminal, power supplies and cables tailored to selected setup
• Subscription and operating profile agreed upon separately

Starlink hardware is a third-party product. Case imagery is a concept configuration; 'Always online' is not an uptime guarantee. Thermal management, ventilation, power, and field use must be verified per project.

Selected Pocket Gear + ConnectPoint Phone

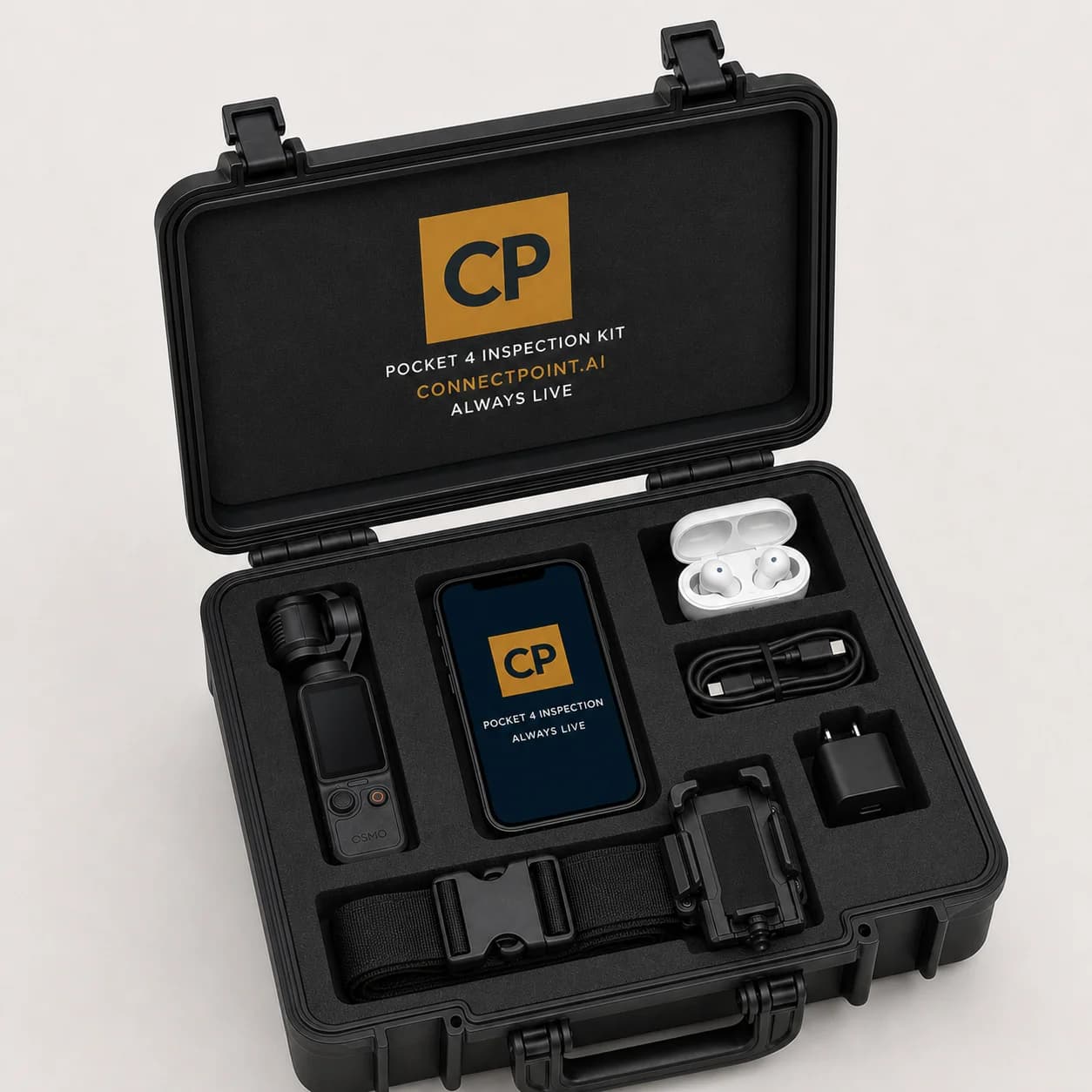

ConnectPoint Pocket 4 Case

Pre-configured case engineered around customer-selected or customer-owned Pocket capture gear.

• Custom foam insert engineered for the locked equipment list
• Phone with preloaded ConnectPoint app supplied by ConnectPoint
• Camera, audio, umbilical cables and mobile mounts included per spec

DJI and Samsung equipment shown are third-party products. Images are concept mockups; 'Always live' is not an uptime guarantee and does not certify tank entry approval.

Selected Beacons + Gateway

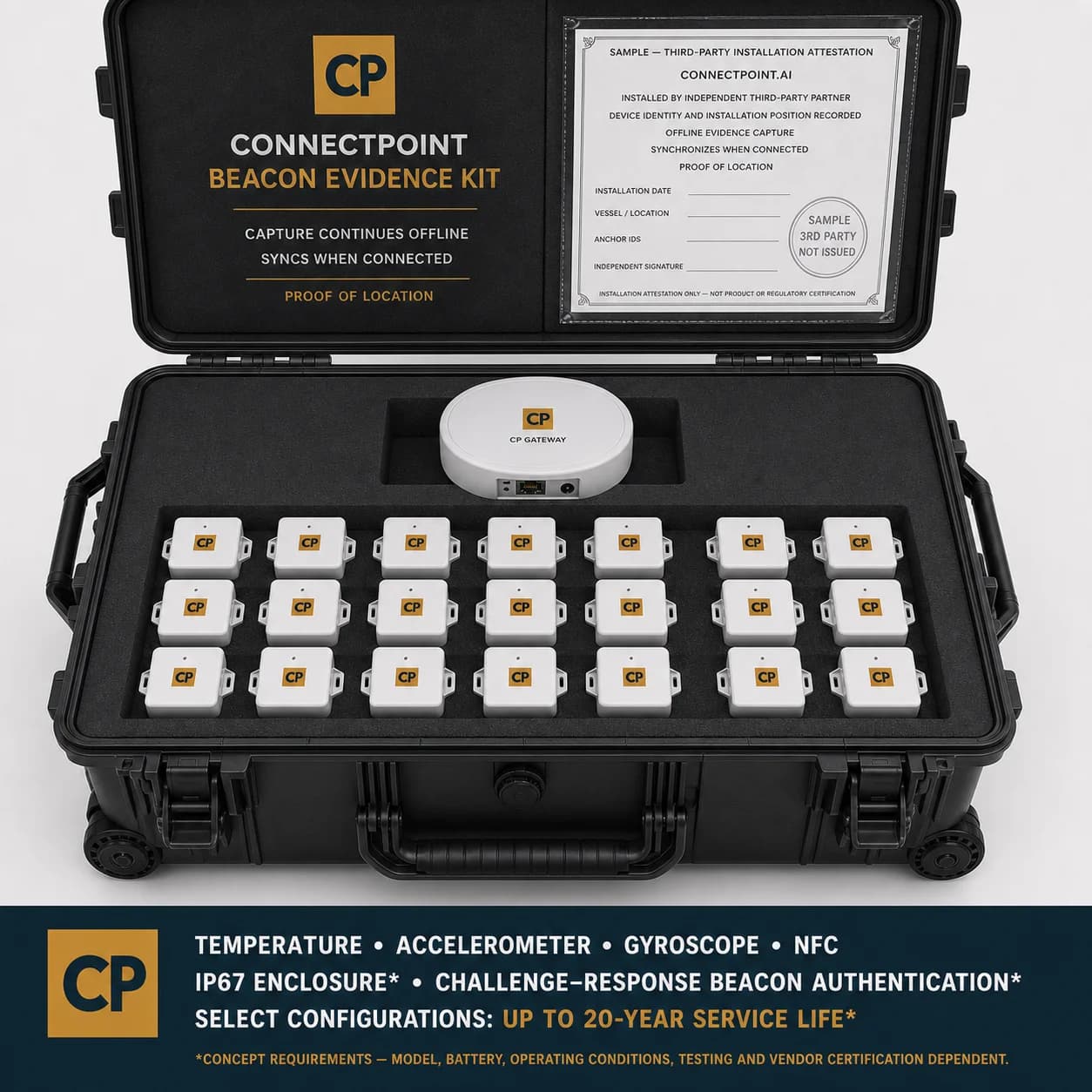

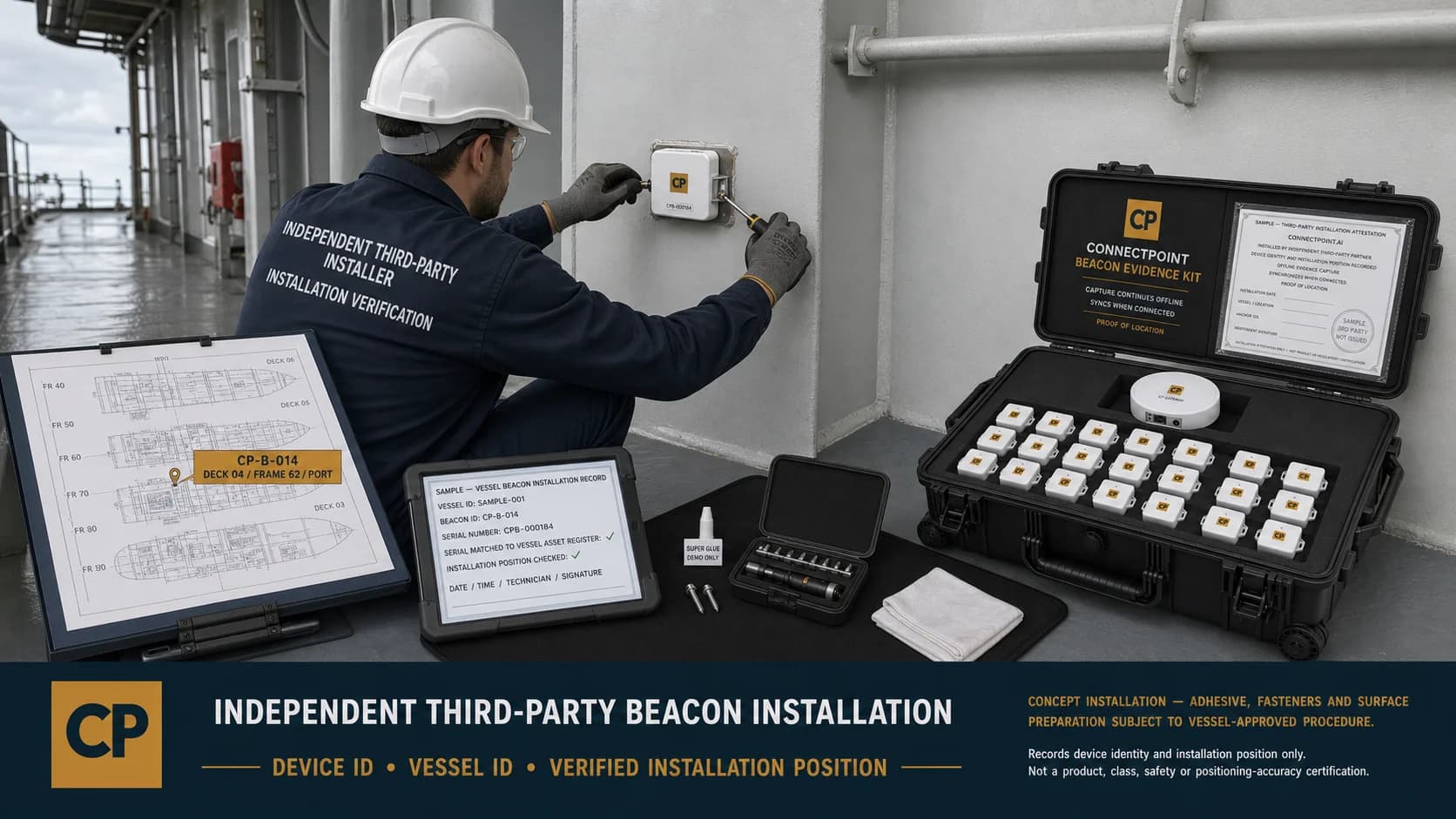

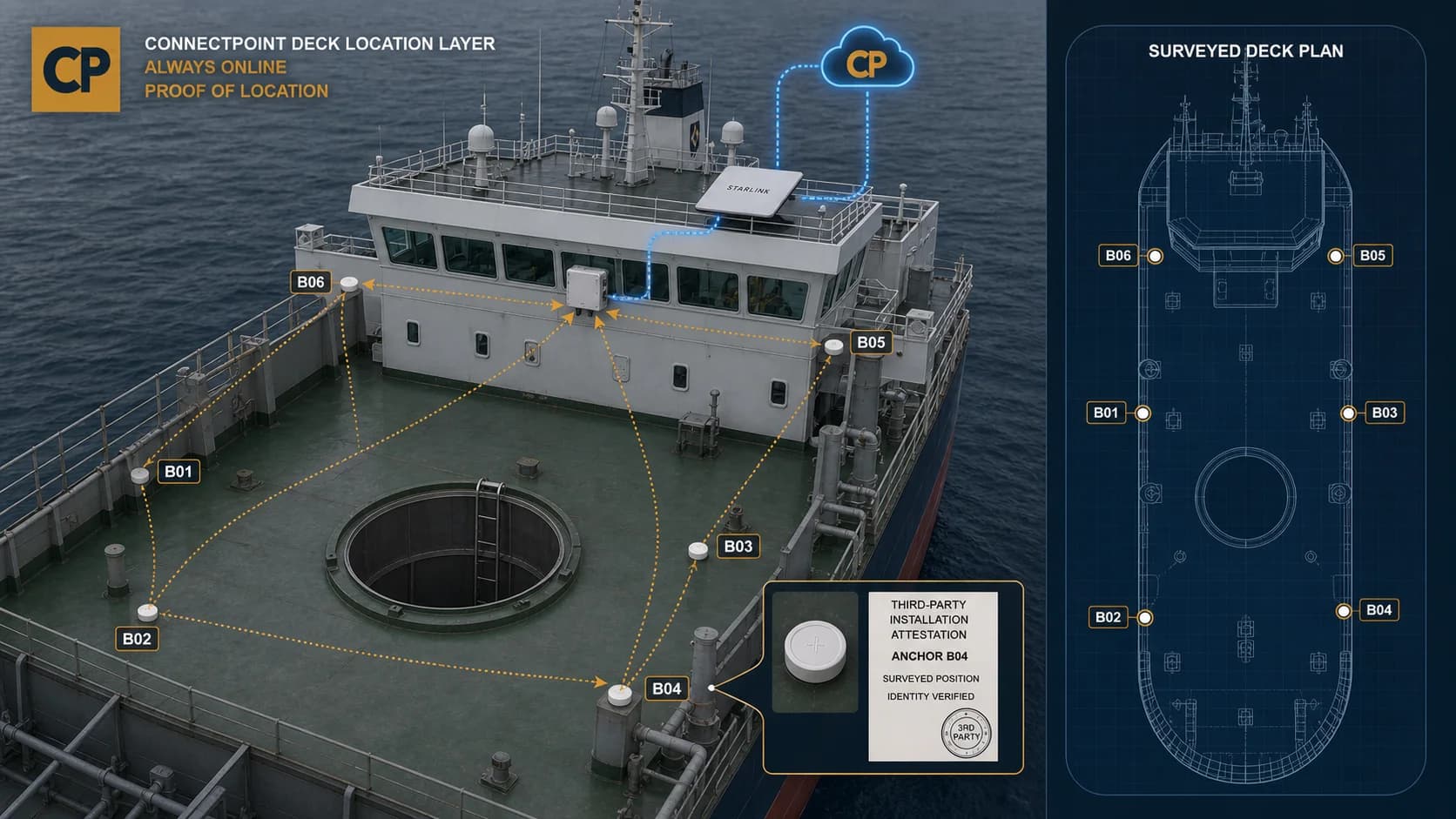

ConnectPoint Beacon Evidence Kit

Pre-configured protective kit for customer-selected BLE beacons, gateway and mounting hardware.

• Foam cutouts tailored to the approved device package
• Beacons and gateway delivered according to selected supplier and model
• Device and mounting registration follow agreed SOP

CP branding represents a packaging and system delivery concept, not proprietary hardware manufacturing. IP rating, battery life, RF propagation, and mounting procedures must be qualified per deployment.

Selected DJI Drone + ConnectPoint Phone

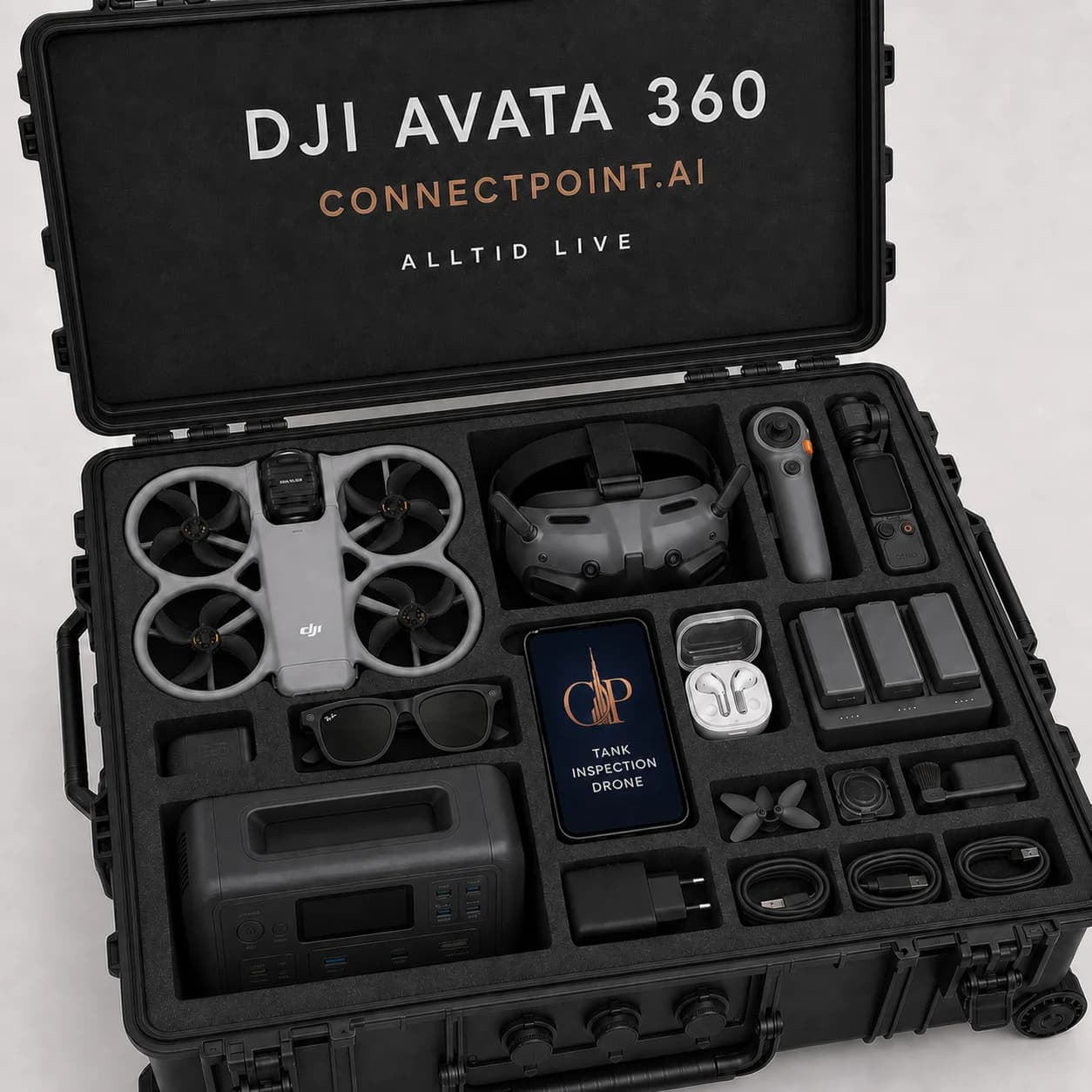

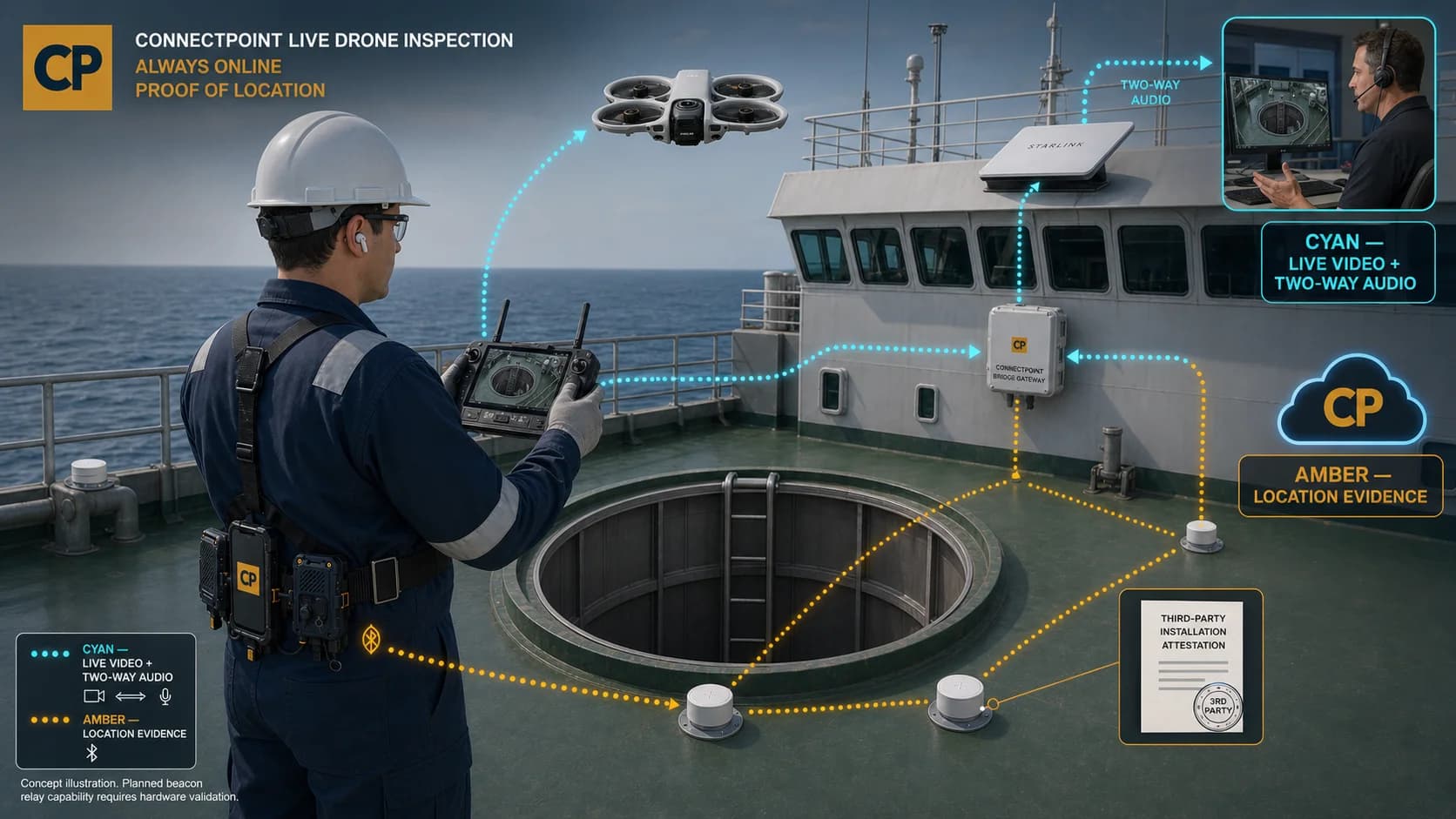

ConnectPoint Avata 360 Case

Pre-configured case for customer-selected or customer-owned DJI drone hardware, with ConnectPoint phone and app when selected.

• Custom foam interior for Avata 360, Goggles N3 and RC Motion 3
• Charging hub and battery compartments included
• Phone with ConnectPoint app included when specified

DJI gear is third-party hardware. Images are concept mockups and do not imply official DJI certification, ConnectPoint integration or maritime field qualification.

Selected DJI Enterprise + ConnectPoint Phone

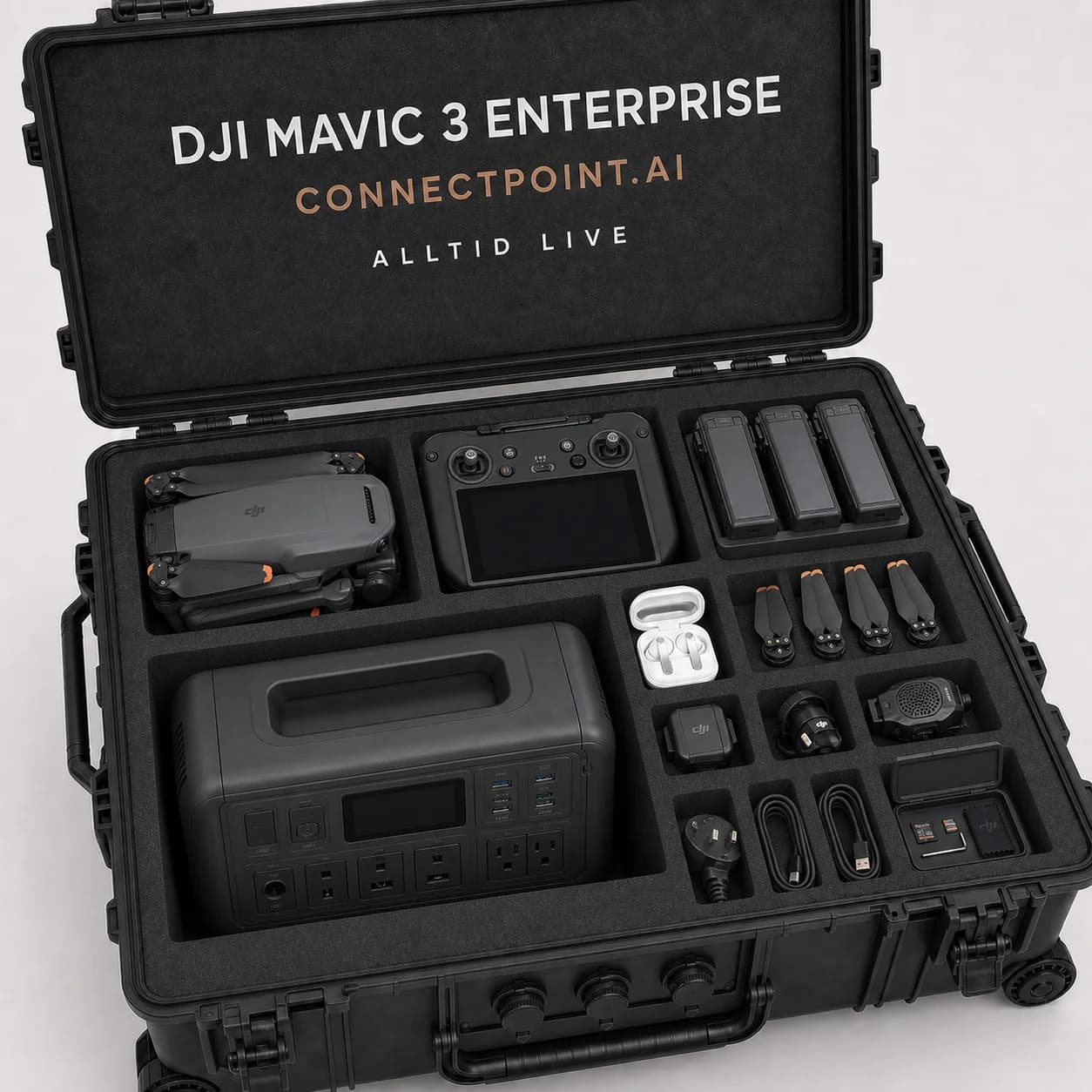

ConnectPoint Mavic 3 Enterprise Case

Pre-configured case engineered for customer-selected or customer-owned Mavic 3 Enterprise hardware.

• Foam insert fitted for Mavic 3E, 3T or 3M with agreed accessories
• Dedicated slots for RC Pro Enterprise and RTK module
• Field phone with ConnectPoint software package when selected

DJI hardware consists of third-party products. Imagery illustrates sample layouts; 'Always live' does not guarantee uptime or maritime certification.

ConnectPoint AI · ConnectPoint Gateway

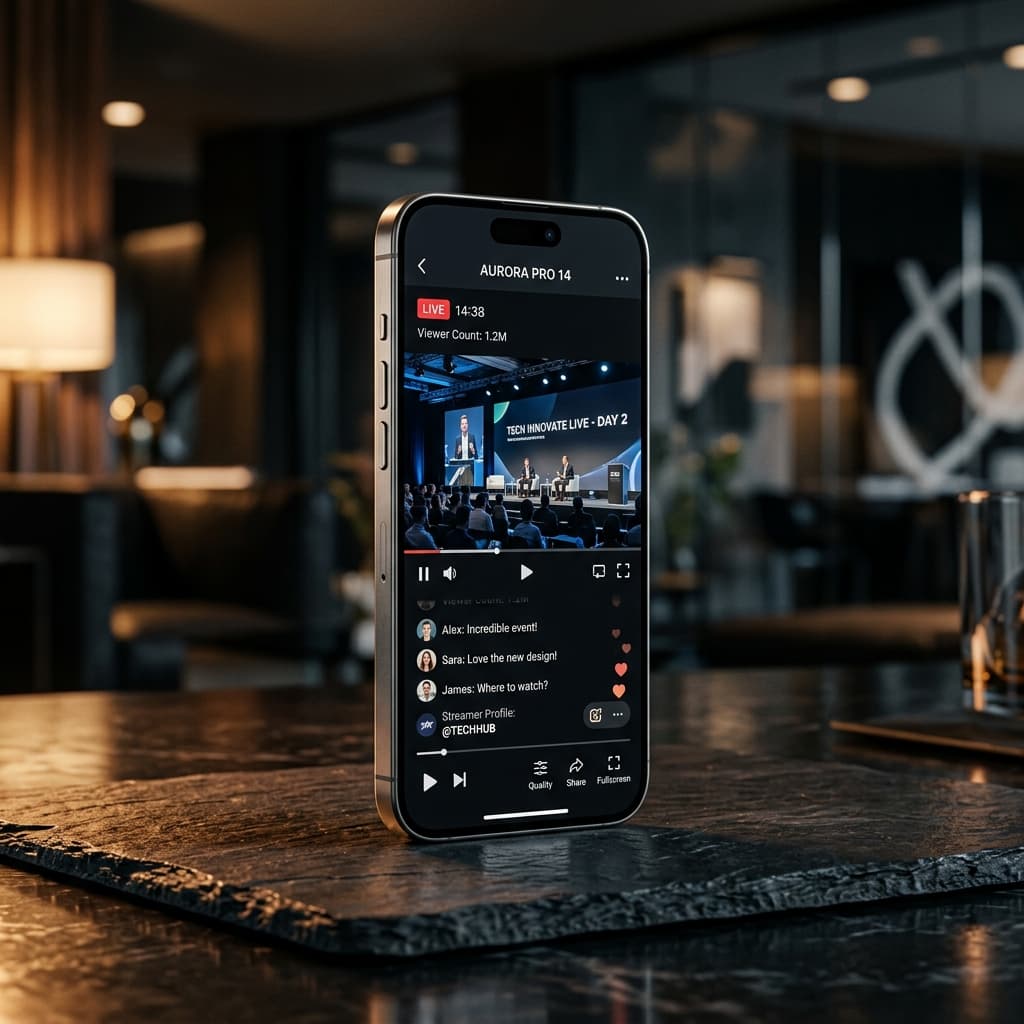

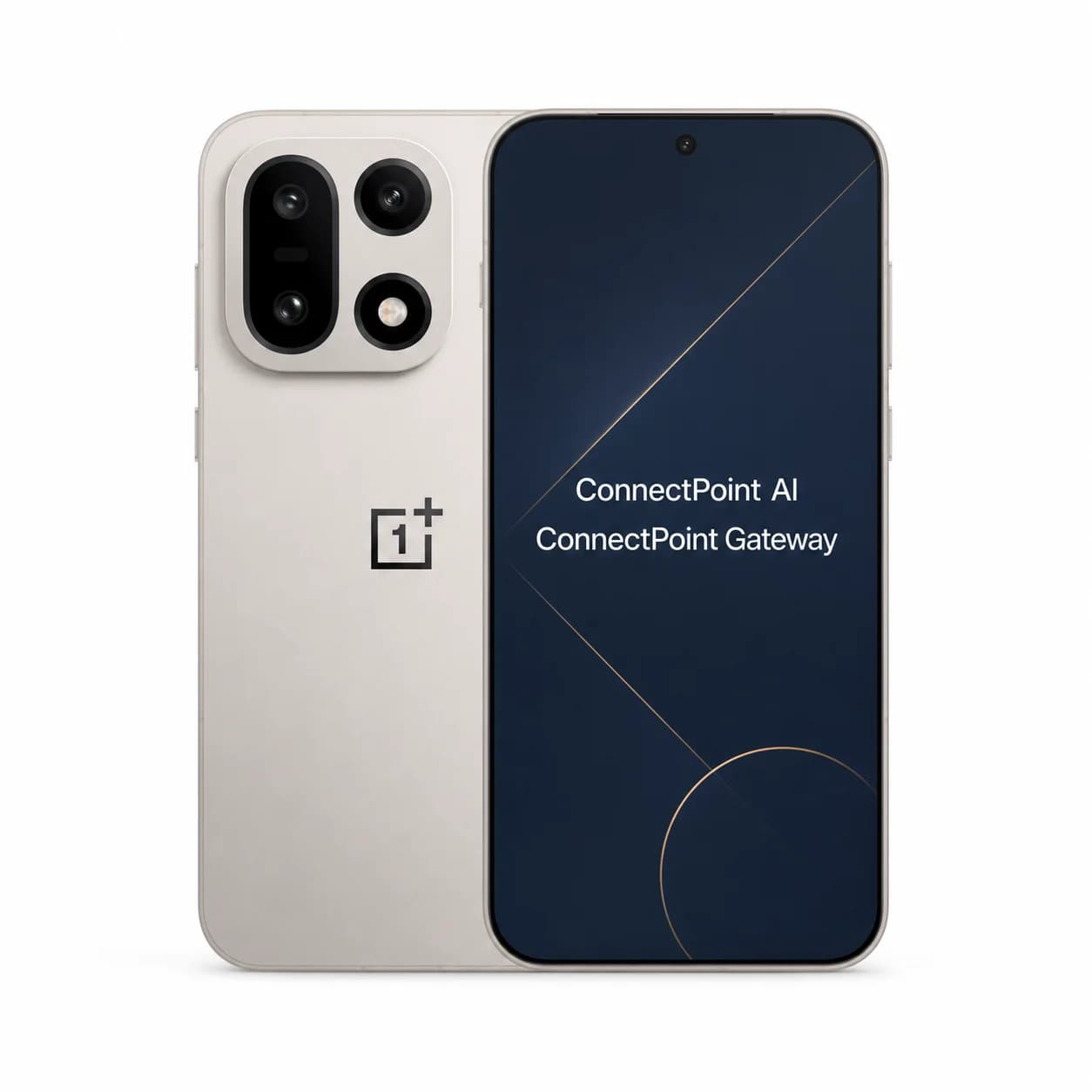

OnePlus 15 · ConnectPoint Field Phone

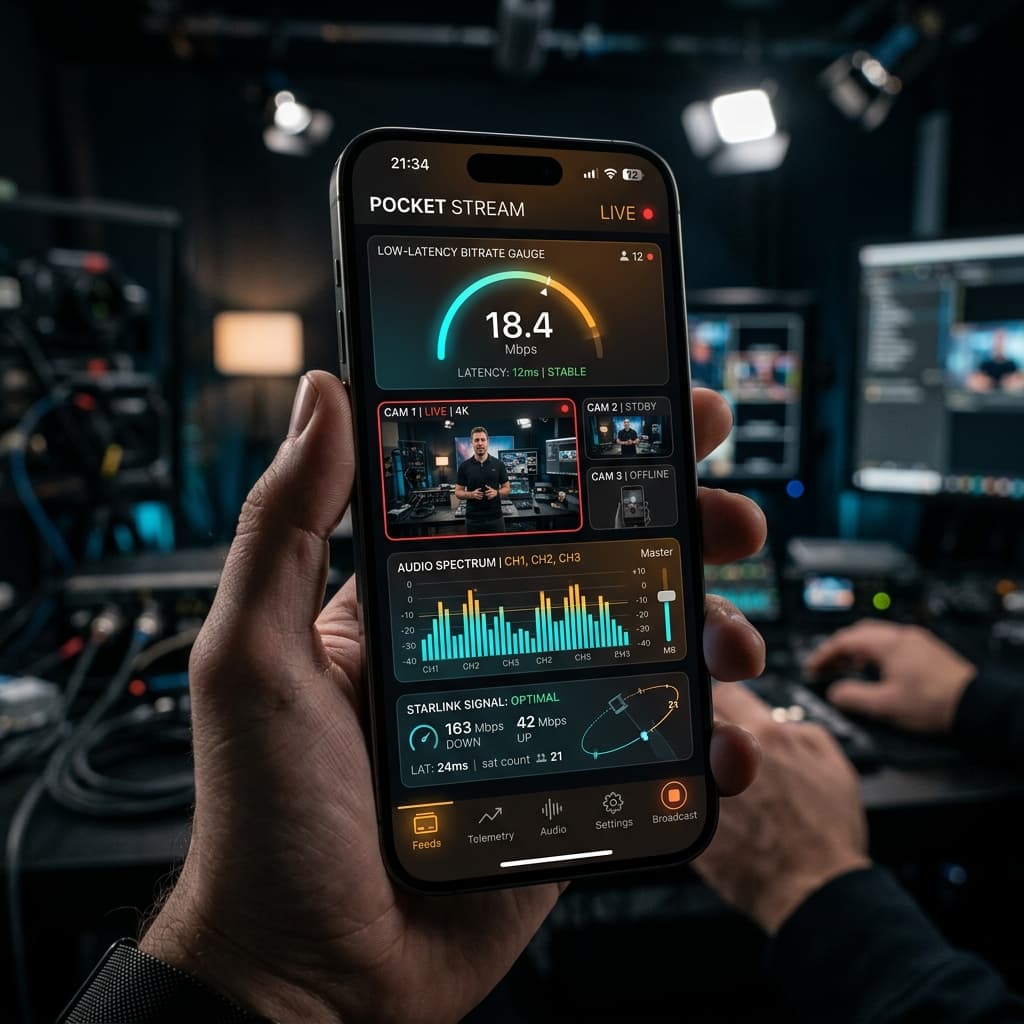

Field phone supplied and prepared by ConnectPoint with the ConnectPoint application suite as part of selected cases.

• Model CPH2747 · 6.78" high-brightness display
• 7300 mAh battery · USB 3.2 Gen 1 wired tethering
• OxygenOS 16 · Wi‑Fi 7 low-latency stream engine

OnePlus hardware is a third-party device. App screens represent concept illustrations and do not document active integration performance or uptime.

SM-R530 · Standard Model

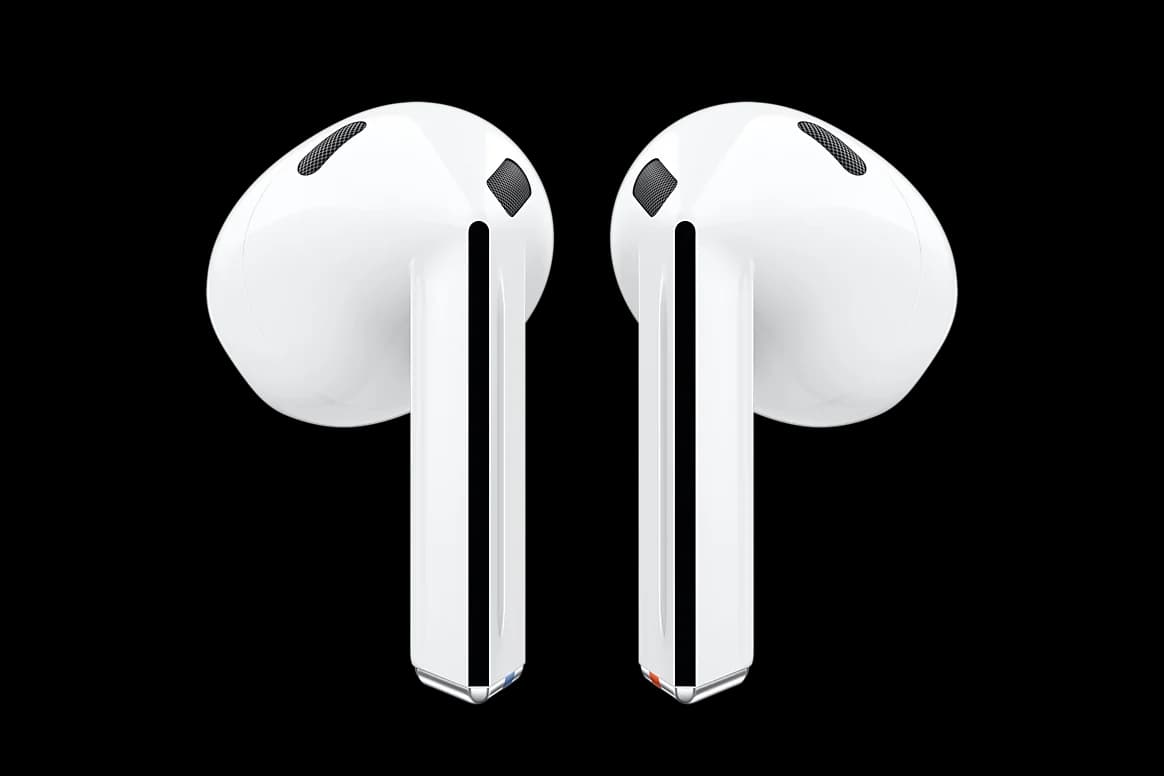

Samsung Galaxy Buds3

Open-type wireless earbuds for clear two-way audio and voice capture in mobile inspection setups.

• 11 mm dynamic drivers · Open-ear ergonomic fit
• Active Noise Cancellation (ANC) · Adaptive EQ
• Bluetooth 5.4 wireless protocol · IP57 water resistance

SM-R540 · Standard Model

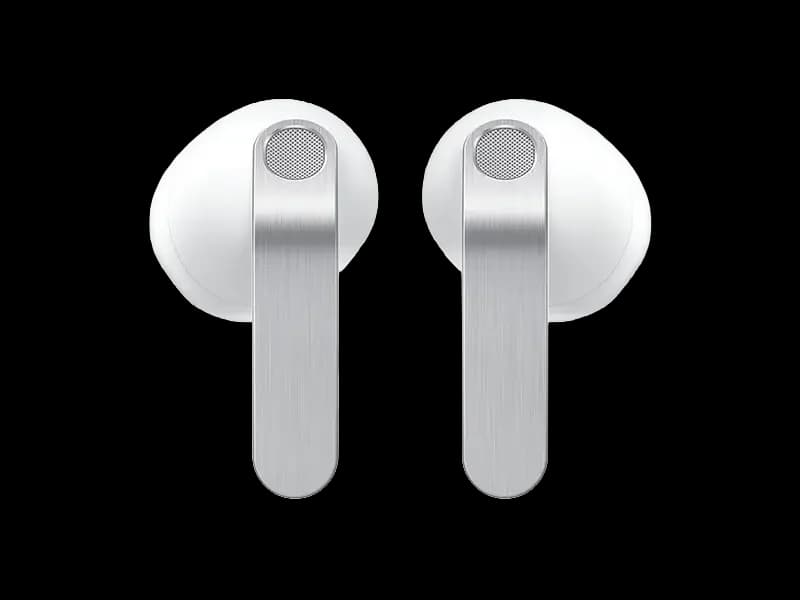

Samsung Galaxy Buds4

Latest-generation open earbuds with adaptive ambient noise control for noisy industrial spaces.

• 11 mm acoustic drivers · Ergonomic ventilated fit
• Adaptive ANC · Smart Noise Control
• Bluetooth 6.1 low-energy link · IP54 protection

DJI

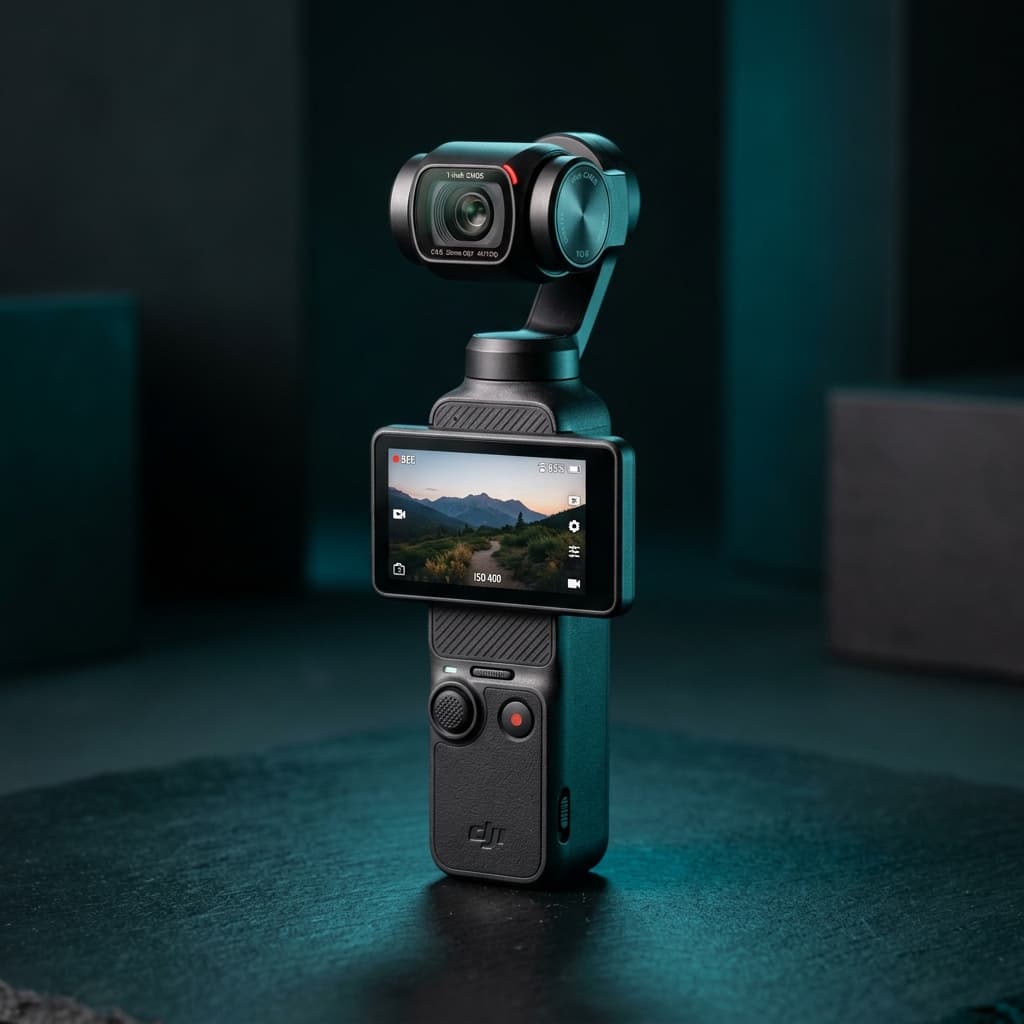

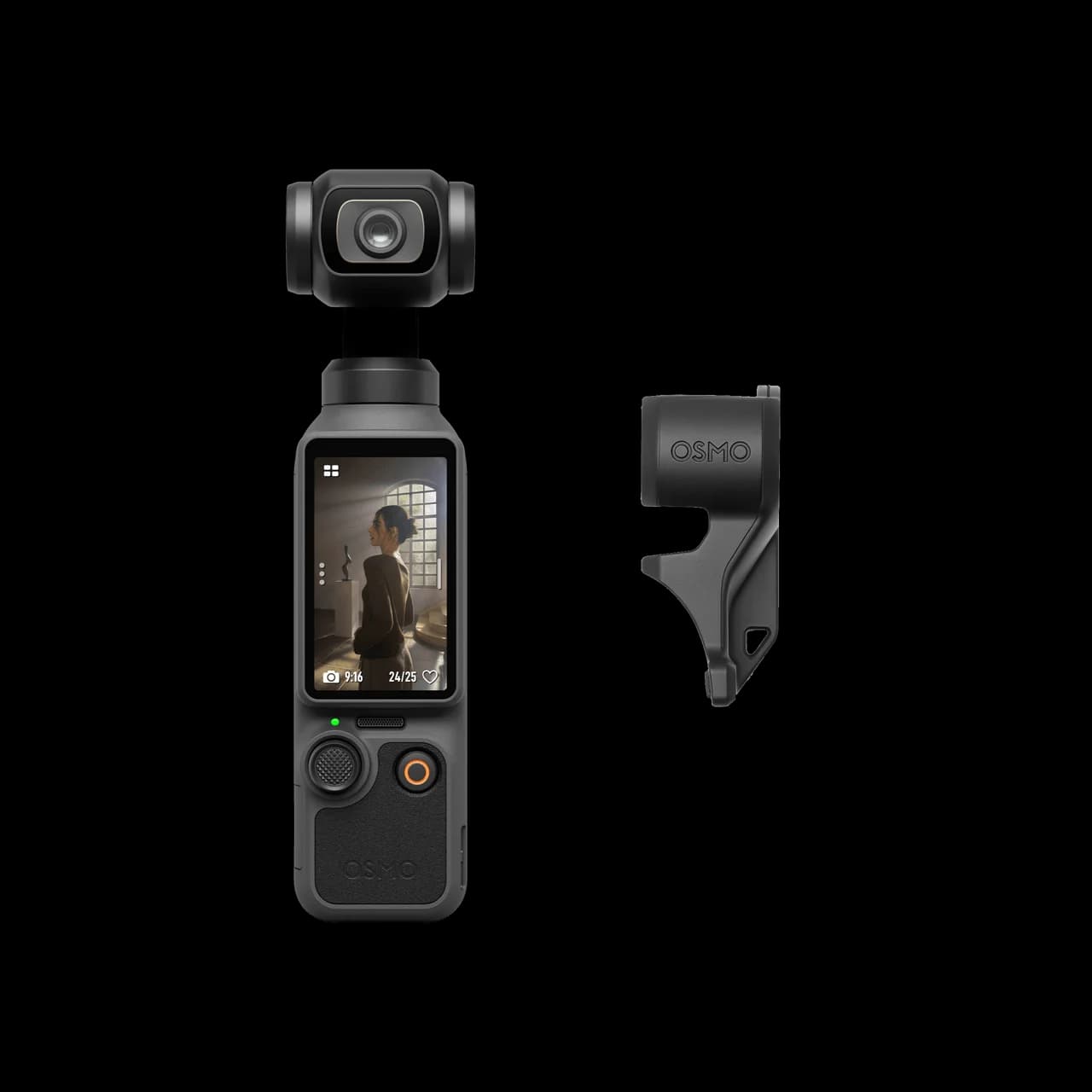

DJI Osmo Pocket 4

Ultra-compact 3-axis stabilized camera for handheld and rig-mounted inspection capture.

• 1" CMOS sensor · 20 mm f/2.0 wide prime optics
• 4K/240 fps high frame rate slow-motion capability
• 107 GB internal high-speed flash storage

DJI · Official Model Name

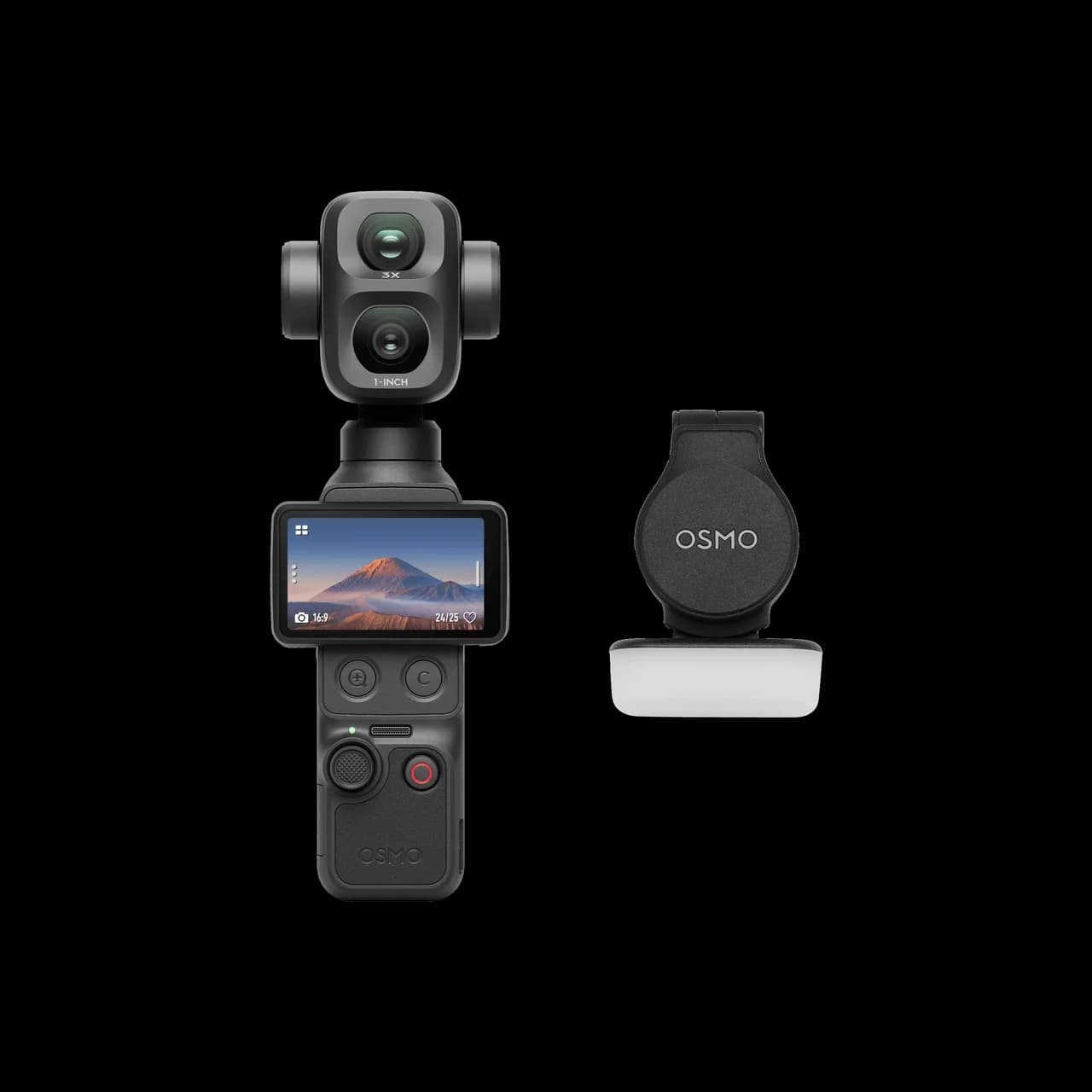

DJI Osmo Pocket 4P

DJI's dual-camera handheld gimbal system with independent wide-angle and telephoto lenses.

• 20 mm wide-angle + 60 mm telephoto dual optical array
• 1" primary + 1/1.28" secondary precision sensors
• Up to 4K/240 fps low-latency video recording

Wayfarer · Standard Style

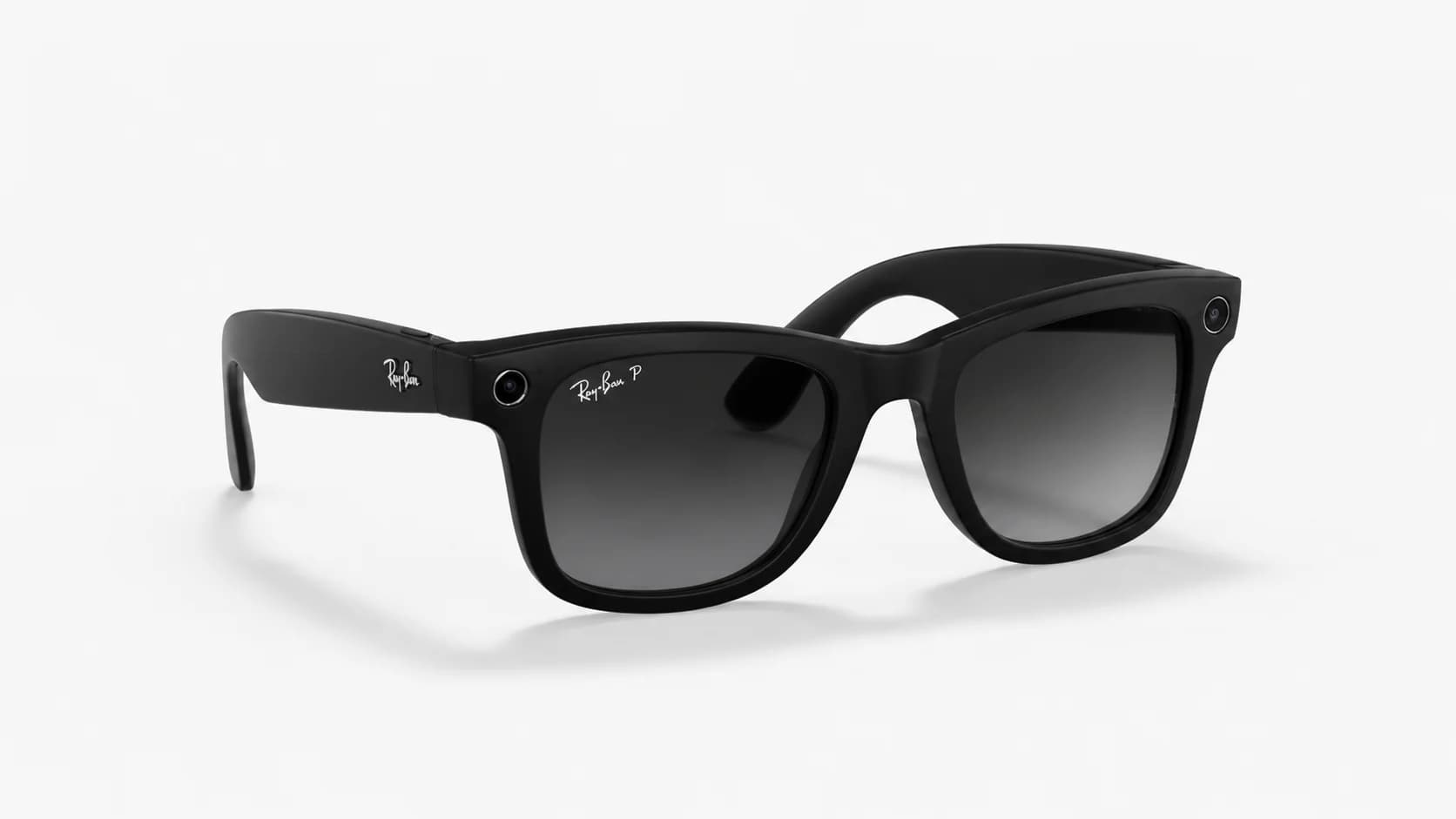

Ray-Ban Meta (Gen 2)

Gen 2 smart eyewear for true hands-free 1st-person POV photo, video, and audio capture.

• 12 MP ultra-wide lens integrated into front frame
• Up to 3K video recording at 30 fps
• Up to 8 hours operational battery life · IPX4 splash resistance

With Meta Neural Band

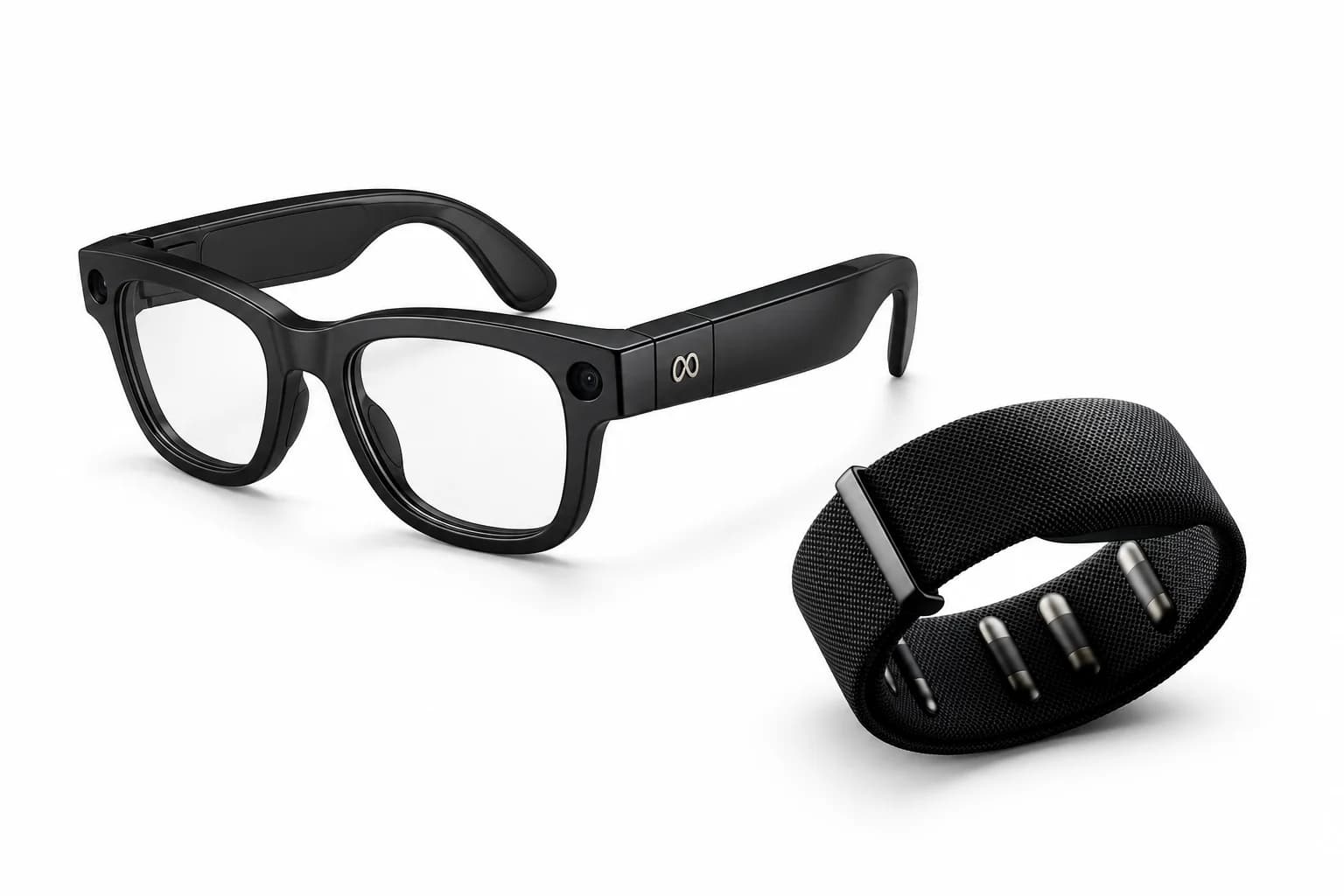

Meta Ray-Ban Display

Ray-Ban smart eyewear featuring an integrated full-color micro-display inside the right lens.

• 600 × 600 px monocular optical waveguide display
• 20° diagonal field of view · 12 MP camera
• Up to 6 hours runtime · Meta Neural Band input included

Mobile Holster + Heavy-Duty Belt

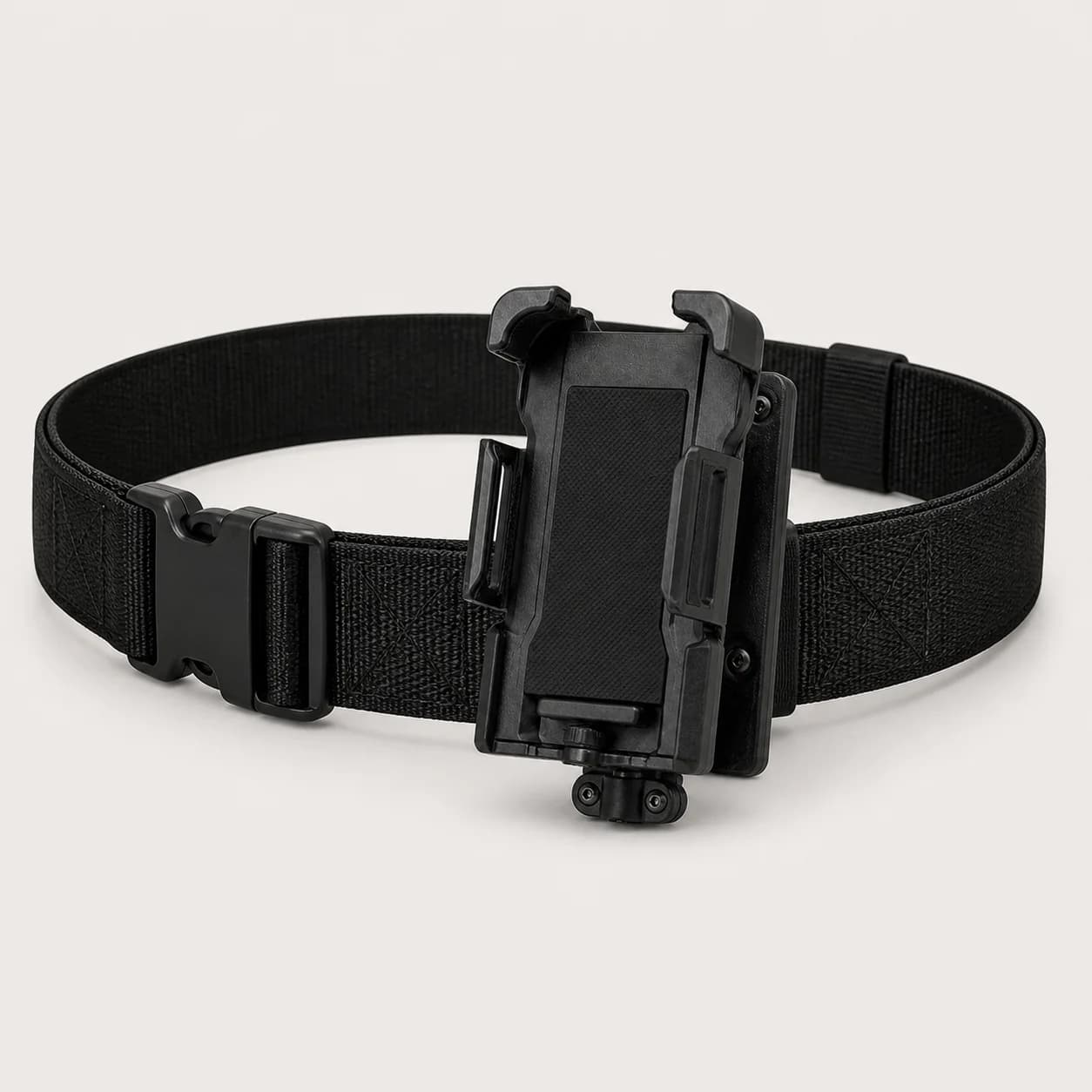

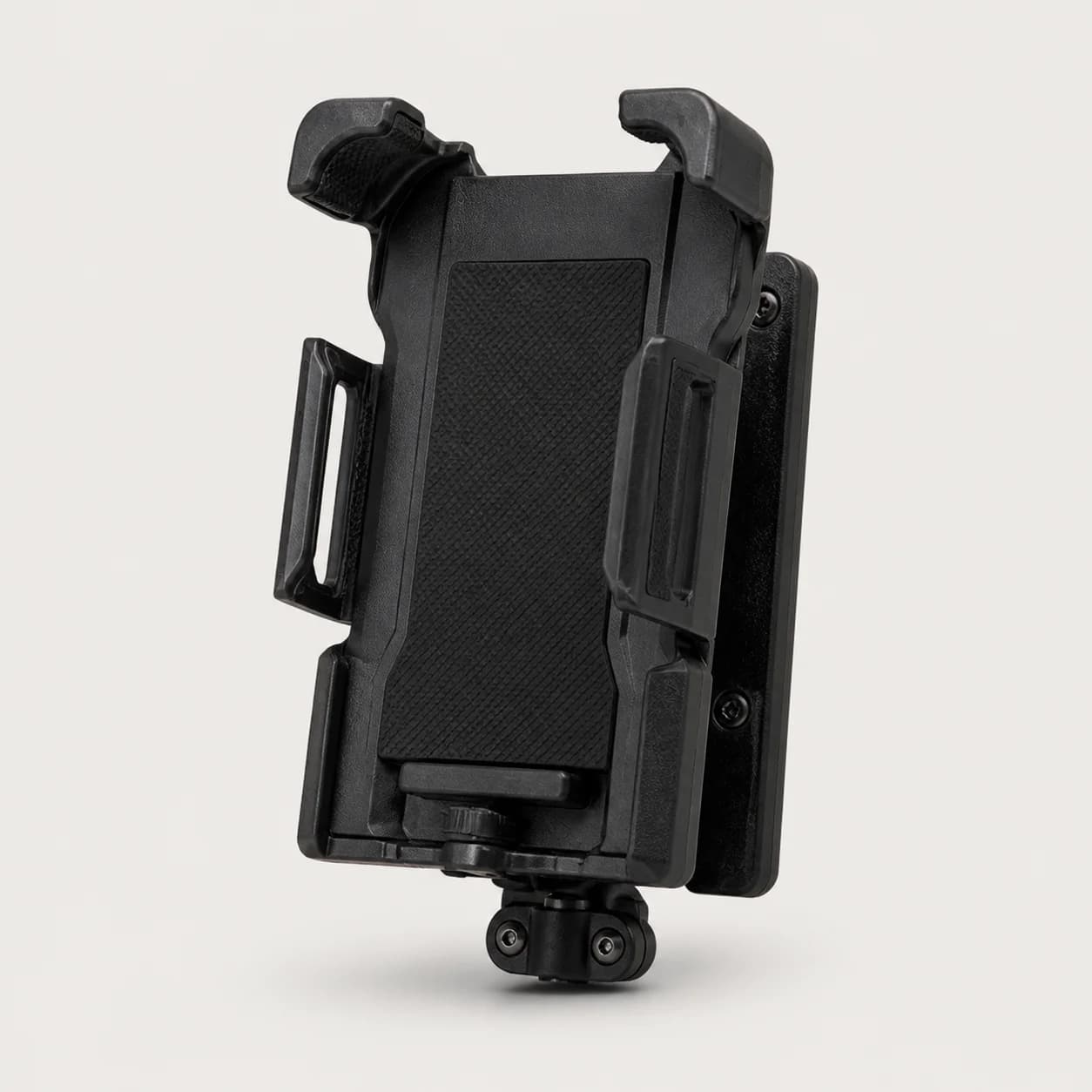

Belt-Mounted Mobile Holster

Tactical belt holster keeping the phone securely positioned and instantly accessible during inspections.

• Quick-adjust reinforced smartphone clamp
• Heavy-duty tactical nylon belt with quick-release buckle
• Lower swivel attachment for angled stream positioning

Specific clip retention, quick-release mechanism and load ratings must be finalized per delivery.

40 m / 80 m Deployments

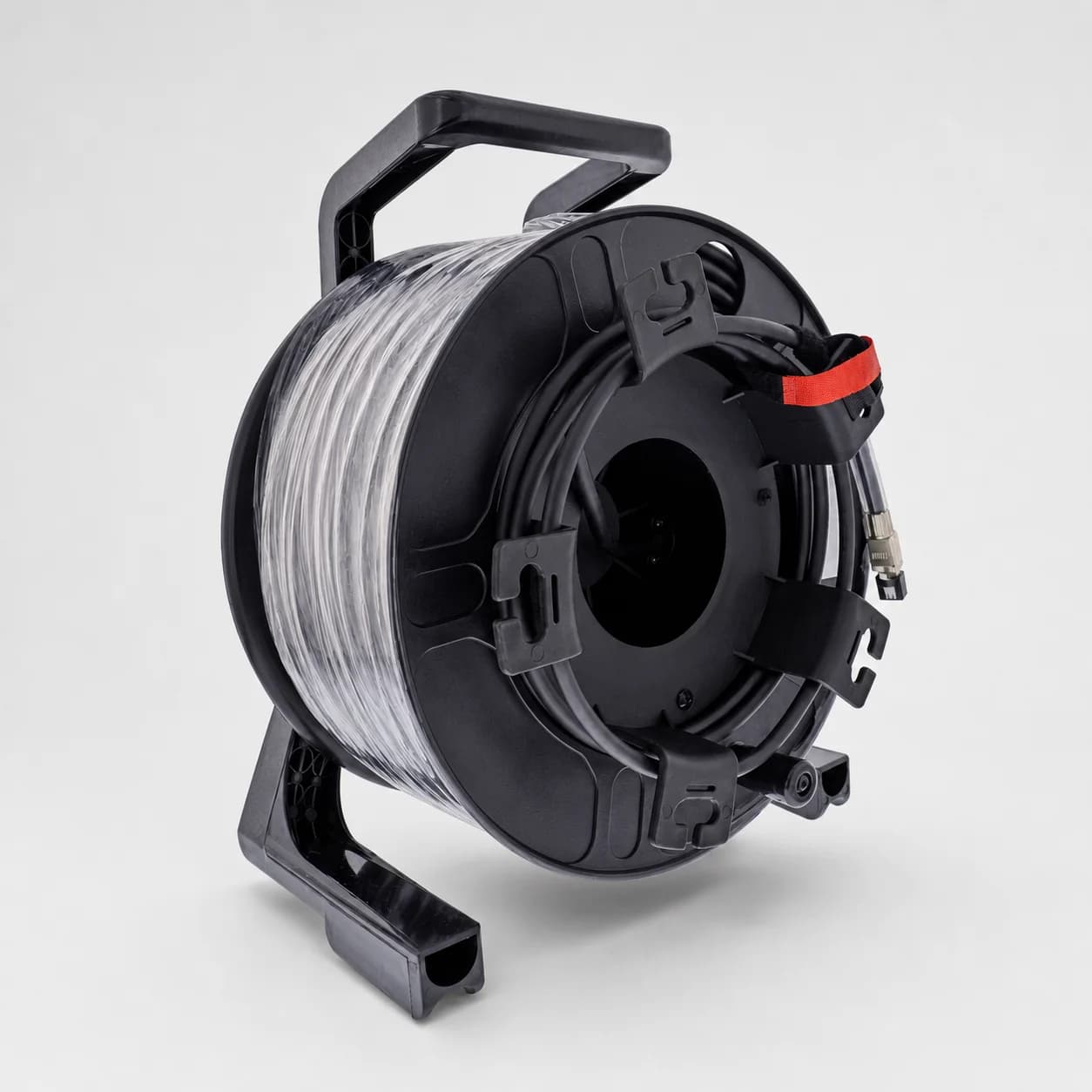

CAT6A Umbilical Cable Reel

Ruggedized marine Ethernet cable reel available in 40 m and 80 m hatch-penetration lengths.

• CAT6A S/FTP shielded braided construction with PUR outer jacket
• 40 m and 80 m configurations available
• Heavy-duty winding drum with cable brake and strain relief

Image shows reference product design. Exact cable jackets, waterproof RJ45/Neutrik connectors and custom lengths follow vendor quotes.

4 × PoE+ + 1 × Uplink

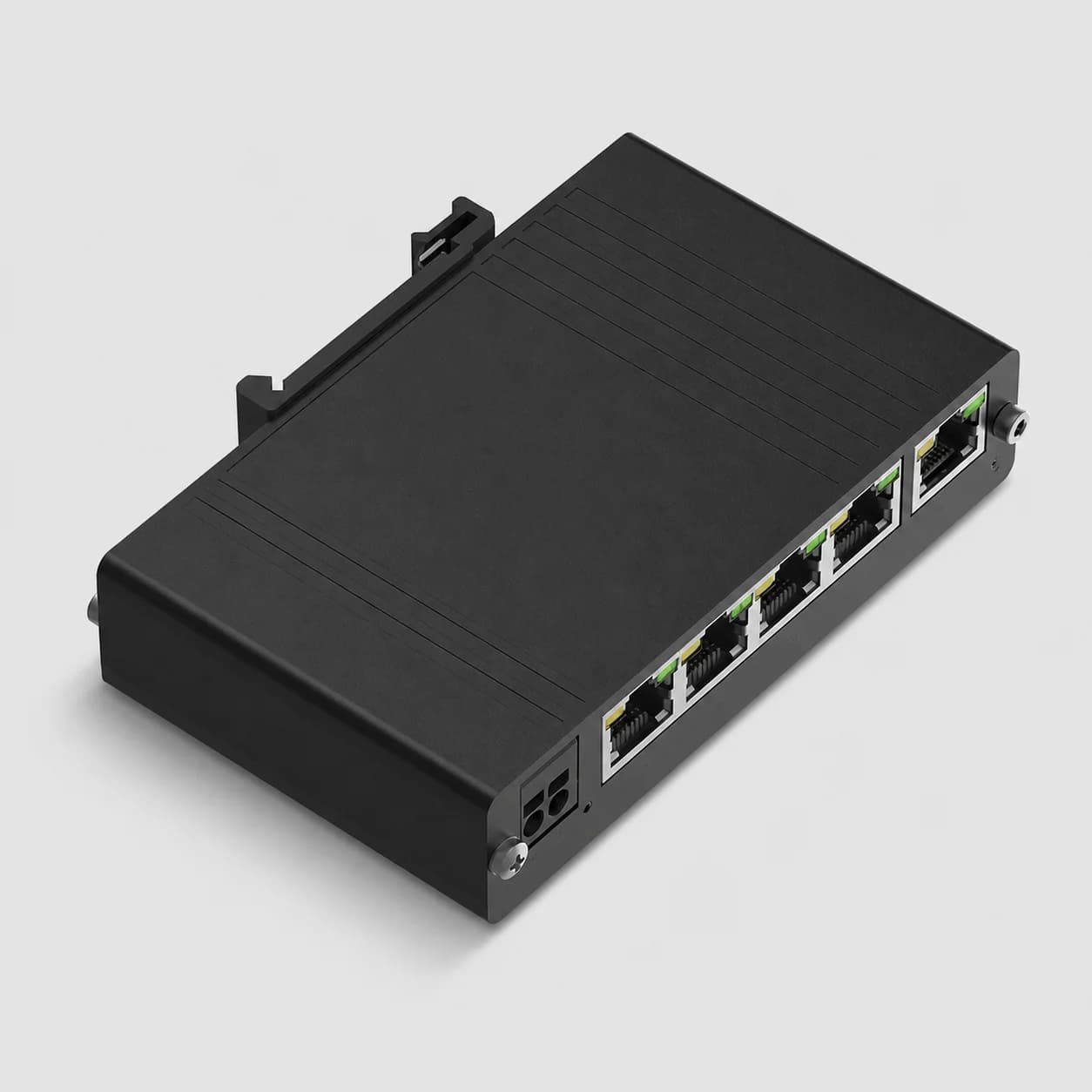

Teltonika TSW100

Compact unmanaged industrial Ethernet switch with four high-power PoE+ supply ports.

• 4 × IEEE 802.3af/at PoE+ gigabit ports
• 1 × Gigabit Ethernet uplink port
• 30 W maximum per port · Total PSE budget up to 120 W

Imagery illustrates 4+1 port layout; exact physical finish follows manufacturer hardware revision.

PoE-in · Wi‑Fi 4 · PoE-out

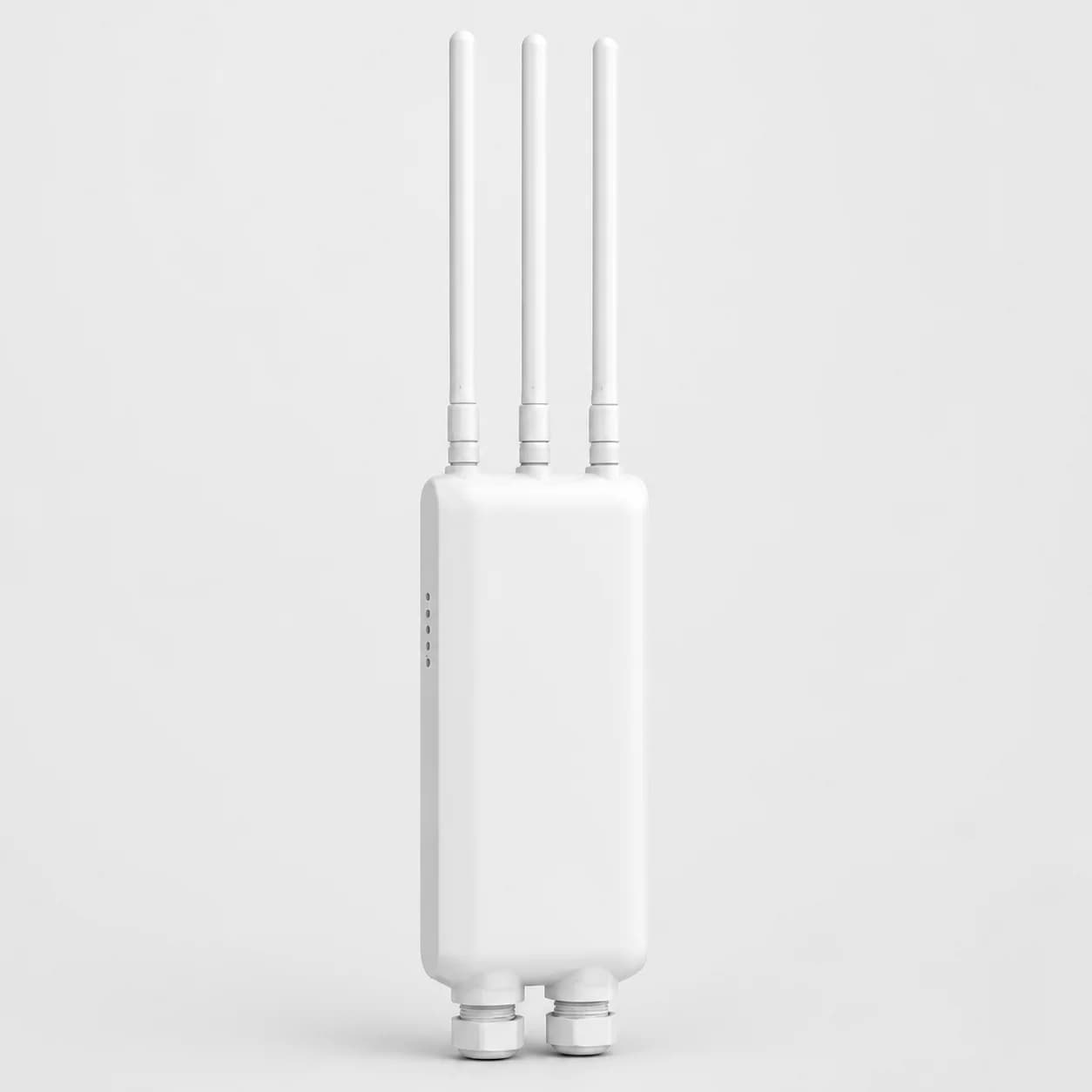

Teltonika OTD144

Ultra-compact outdoor router with PoE passthrough, engineered for portable tank sled installations.

• 1 × 802.3af/at PoE-in port
• 1 × 802.3af PoE-out passthrough port · 2.4 GHz Wi‑Fi 4
• IP55 rated enclosure · Lightweight 335 g unit

Image shows desired form factor. Deployment requires separate sled carriage, pull-line and mechanical strain relief.

Rechargeable PoE Gateway

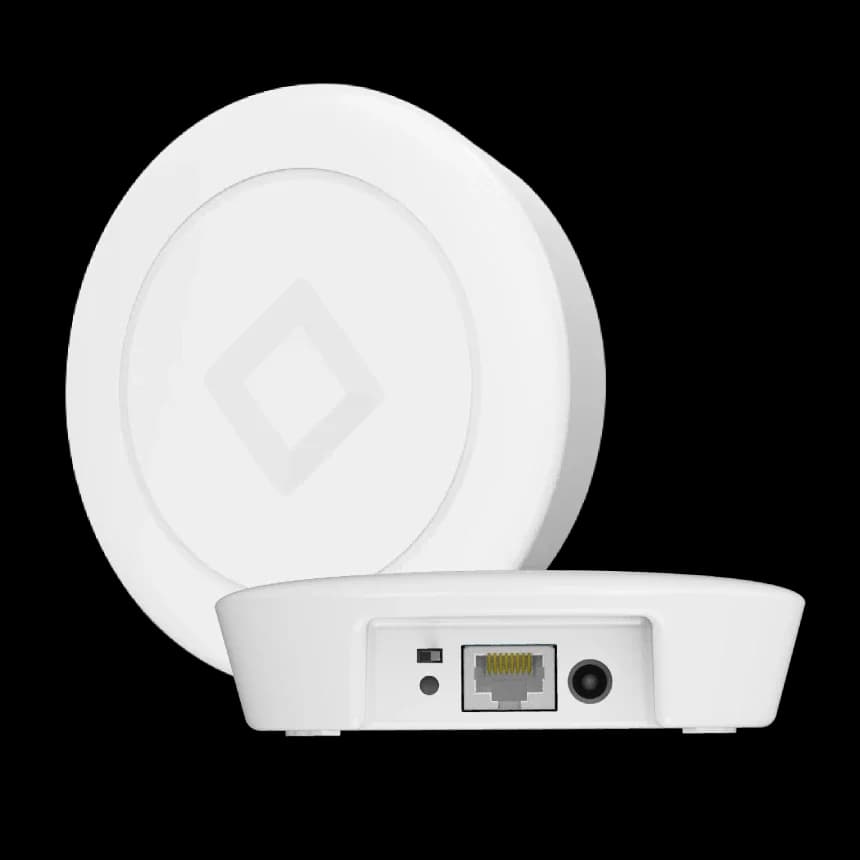

Minew MG4 Rechargeable Gateway

PoE-powered Bluetooth gateway with internal battery reserve for tracking BLE beacons in confined spaces.

• Dual-core ESP32‑S3 + nRF52833 processor · BLE 5.1
• 2000 mAh rechargeable battery · Up to 12h backup
• Ethernet primary path with automatic Wi‑Fi failover

Location Relay Beacon

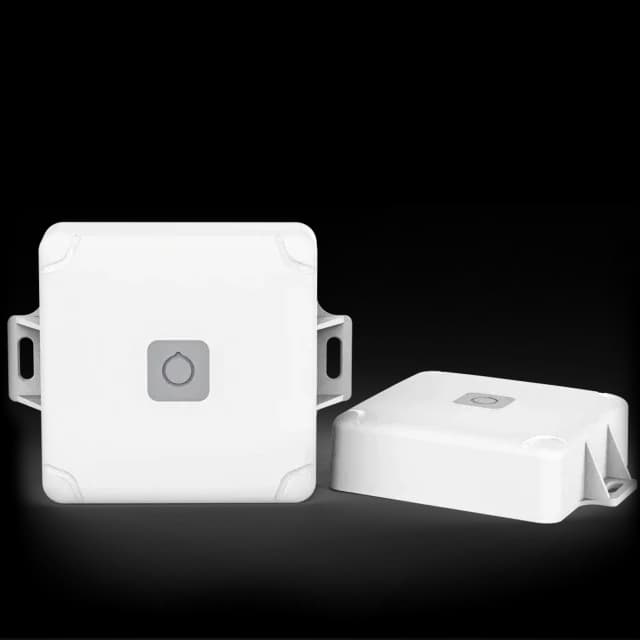

Minew MBM04 Location Anchor

Long-range BLE anchor node and relay for non-GPS spatial location and mesh telemetry inside metal tanks.

• Nordic nRF54L15 architecture · Bluetooth LE 6.1 channel sounding
• IP67 waterproof · 10,800 mAh Li‑SOCl₂ industrial battery
• 1–3 m specified indoor system positioning accuracy

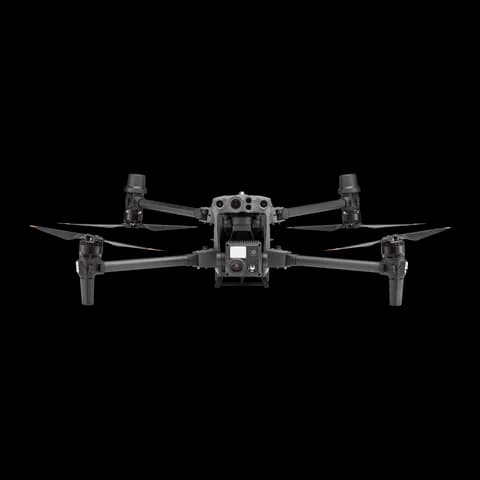

Original RC Plus · 1st Generation

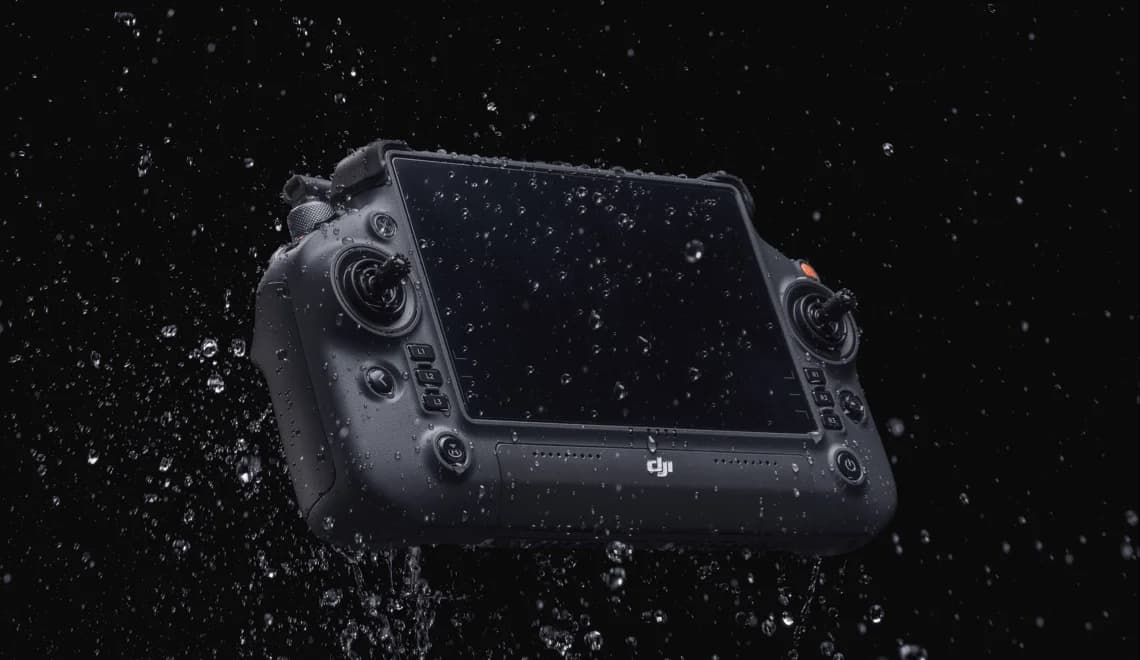

Matrice 30T + DJI RC Plus

DJI Matrice 30T thermal drone package with the original DJI RC Plus controller.

• DJI Matrice 30T drone with thermal + visual zoom sensors
• DJI RC Plus ground controller · Original edition
• 7.02" 1200-nit daylight readable high-bright screen

DJI compatibility applies to the manufacturer combination. It does not certify ConnectPoint integration or maritime survey qualification.

DJI RC Plus 2 Enterprise

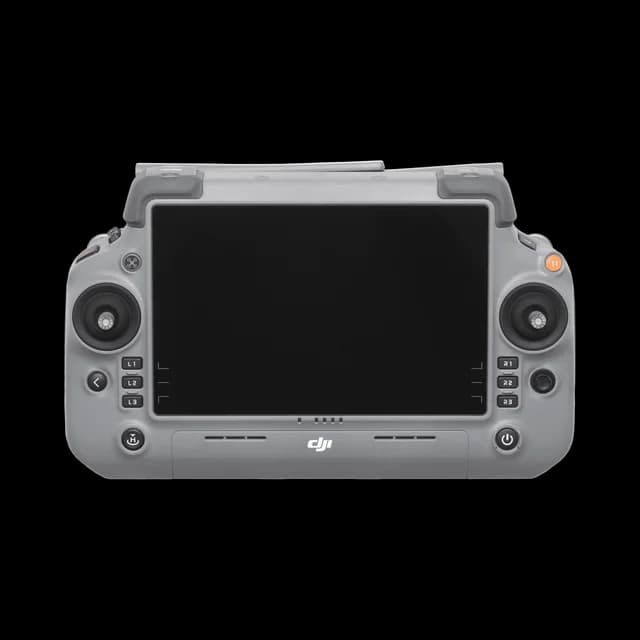

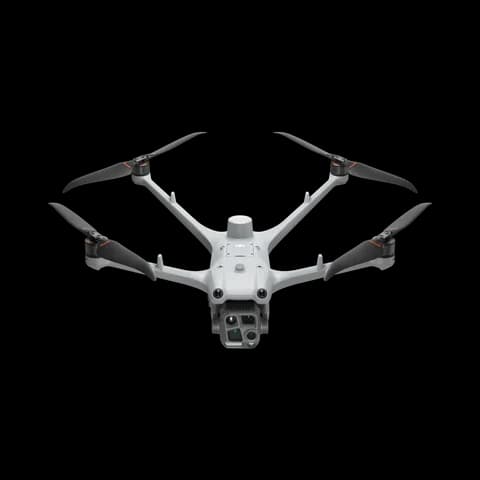

Matrice 4D / 4TD + RC Plus 2

Next-generation Matrice 4D dock/inspection family paired with DJI RC Plus 2 Enterprise.

• DJI Matrice 4D (Visual) / Matrice 4TD (Thermal)
• DJI RC Plus 2 Enterprise ground control station
• O4 Enterprise long-range robust transmission link

DJI compatibility applies to the manufacturer combination. It does not certify ConnectPoint integration or maritime survey qualification.

DJI RC Plus 2 Enterprise

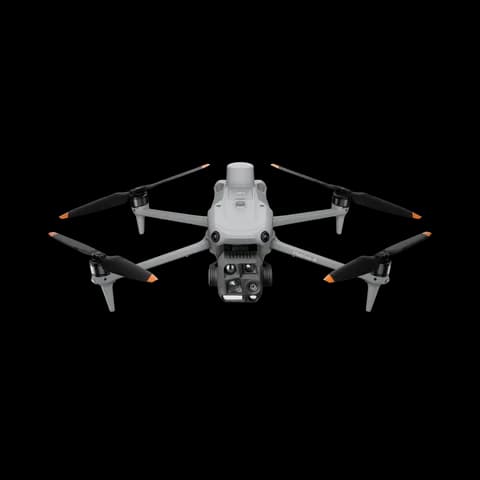

Matrice 4E / 4T + RC Plus 2

Matrice 4 Enterprise aircraft series coupled with DJI RC Plus 2 Enterprise remote controller.

• DJI Matrice 4E (Mapping) / Matrice 4T (Thermal)
• DJI RC Plus 2 Enterprise controller with dual-operator support
• Hot-swappable battery ecosystem and laser rangefinder

DJI compatibility applies to the manufacturer combination. It does not certify ConnectPoint integration or maritime survey qualification.

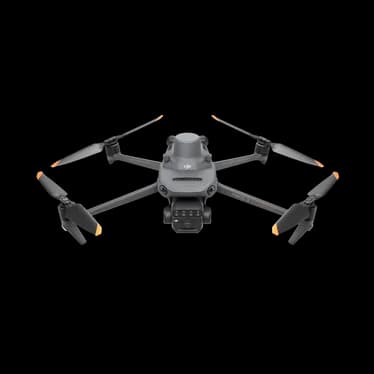

3E / 3T / 3M · RC Pro Enterprise

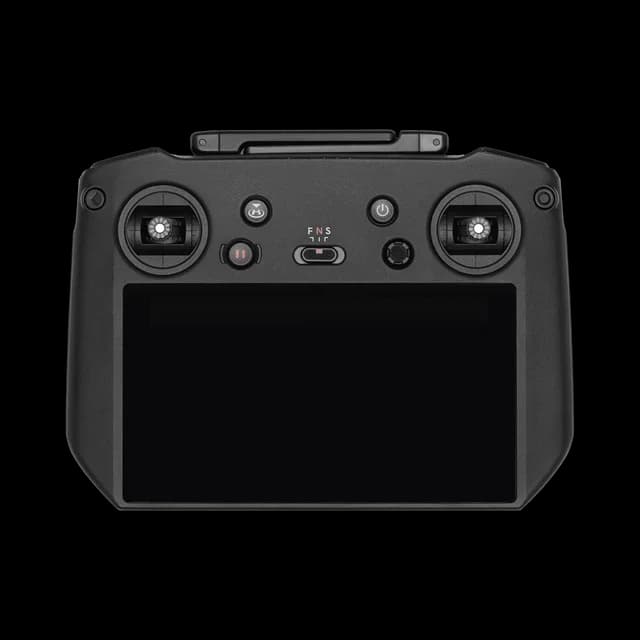

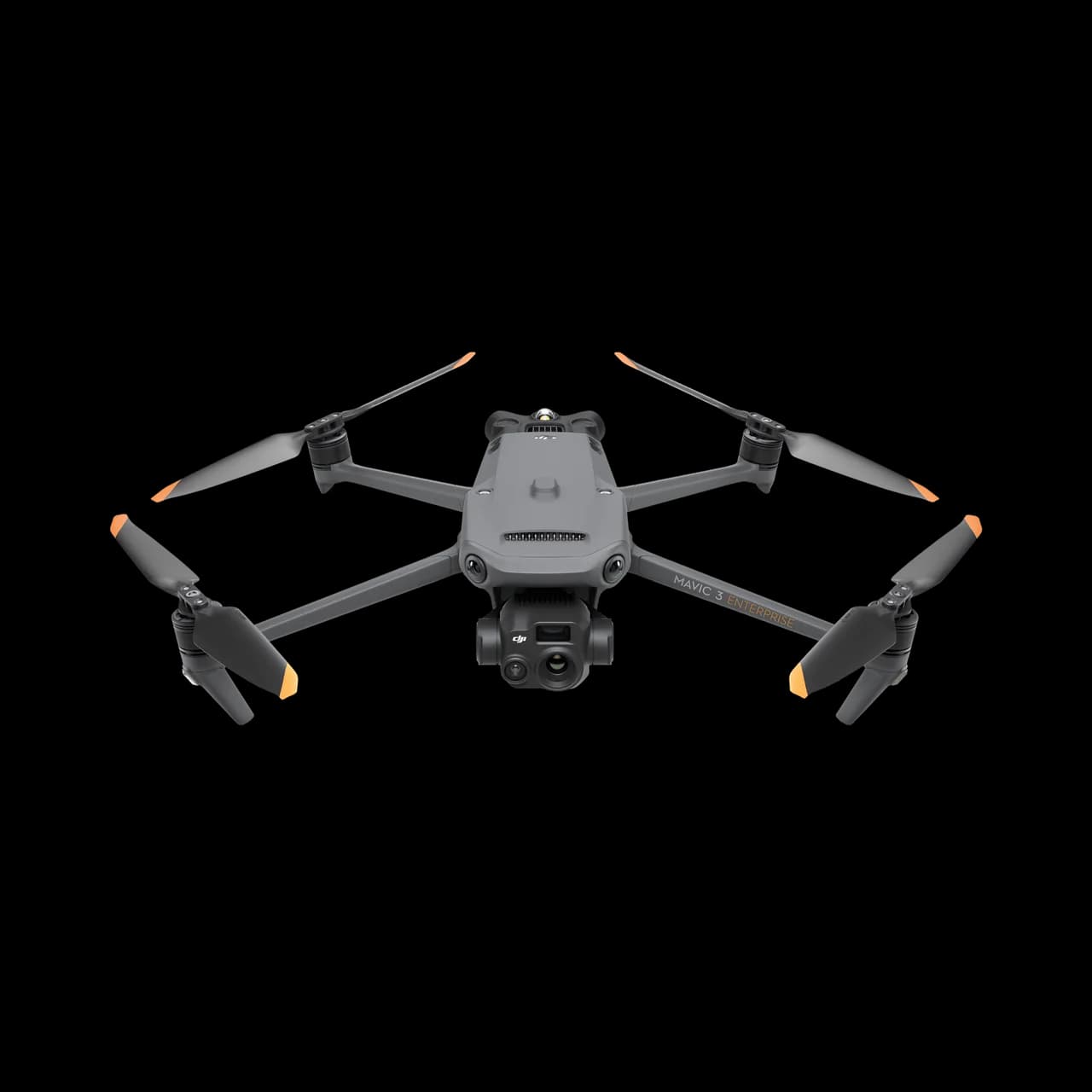

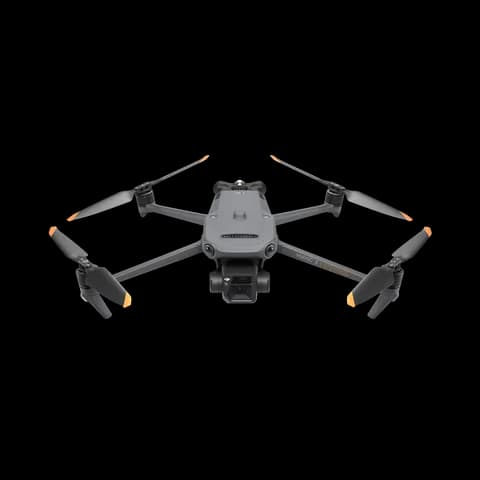

Mavic 3 Enterprise + RC Pro

Mavic 3 Enterprise compact fleet paired with DJI RC Pro Enterprise controller.

• DJI Mavic 3E (Survey), 3T (Thermal) or 3M (Multispectral)
• DJI RC Pro Enterprise ground controller
• RC Plus and RC Plus 2 controllers are not compatible

DJI compatibility applies to the manufacturer combination. It does not certify ConnectPoint integration or maritime survey qualification.

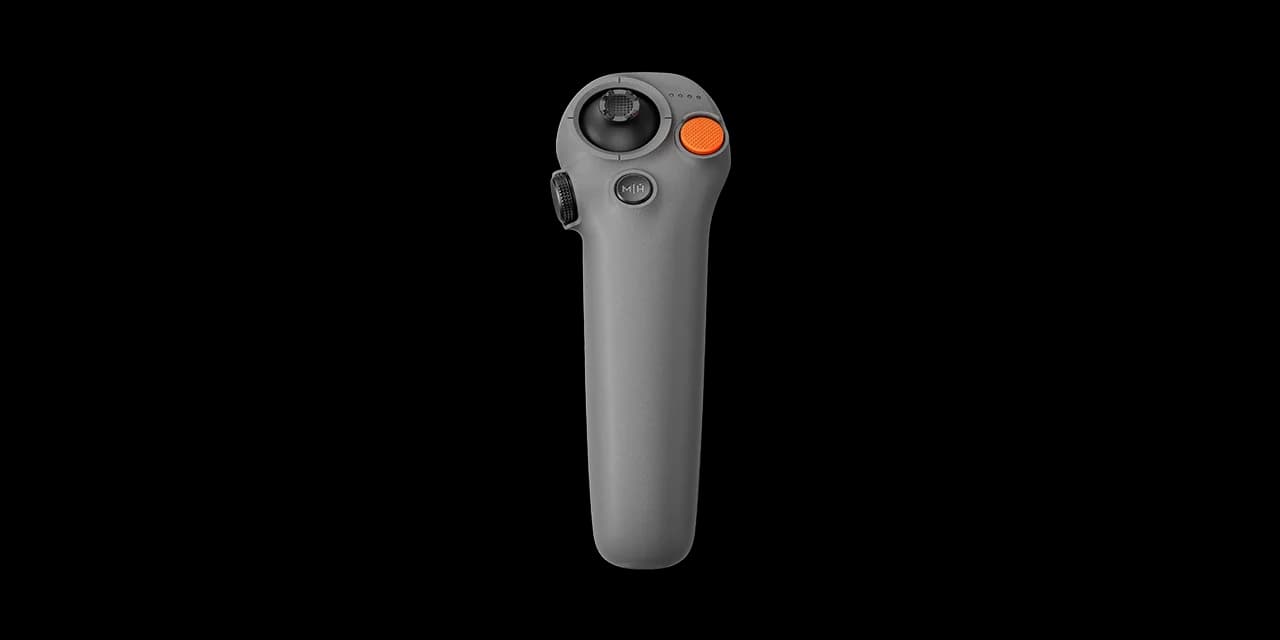

Avata 360 + Goggles N3 + RC Motion 3

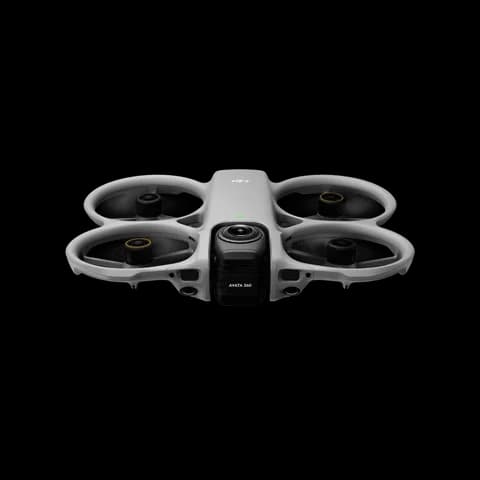

DJI Avata 360 Motion Fly More Combo

All-in-one confined-space inspection drone, FPV goggles, and intuitive motion controller.

• DJI Avata 360 ducted confined-space drone
• DJI Goggles N3 ultra-low latency FPV headset
• DJI RC Motion 3 single-handed intuitive flight stick

DJI compatibility applies to the manufacturer combination. It does not certify ConnectPoint integration or maritime survey qualification.
