How it works

From field power to sealed record

Proof of Evidence starts with a portable network and power case — connecting your inspection equipment into one protected interior, then into a sealed inspection record others can examine later.

  • Platform concept
  • Your equipment
  • ConnectPoint network
  • Sealed inspection record

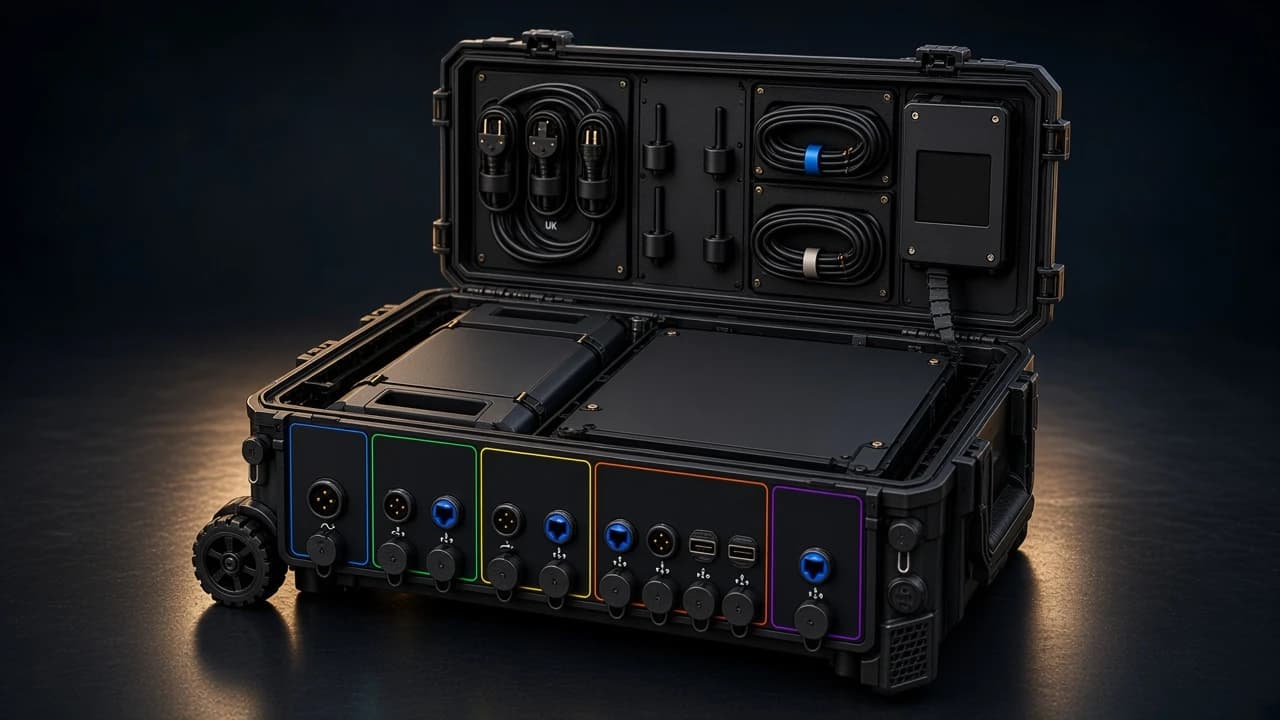

Open rugged ConnectPoint case showing protected interior network and power layout

Protected interior concept

Portable network & power for field inspection

Concept illustration · monitor requires software integration. Final specifications require validation.

Portable network & power

Protected interior

An open rugged case organizes power, radios, and network links so field gear can join one protected path — from lid storage to the color-coded I/O edge.

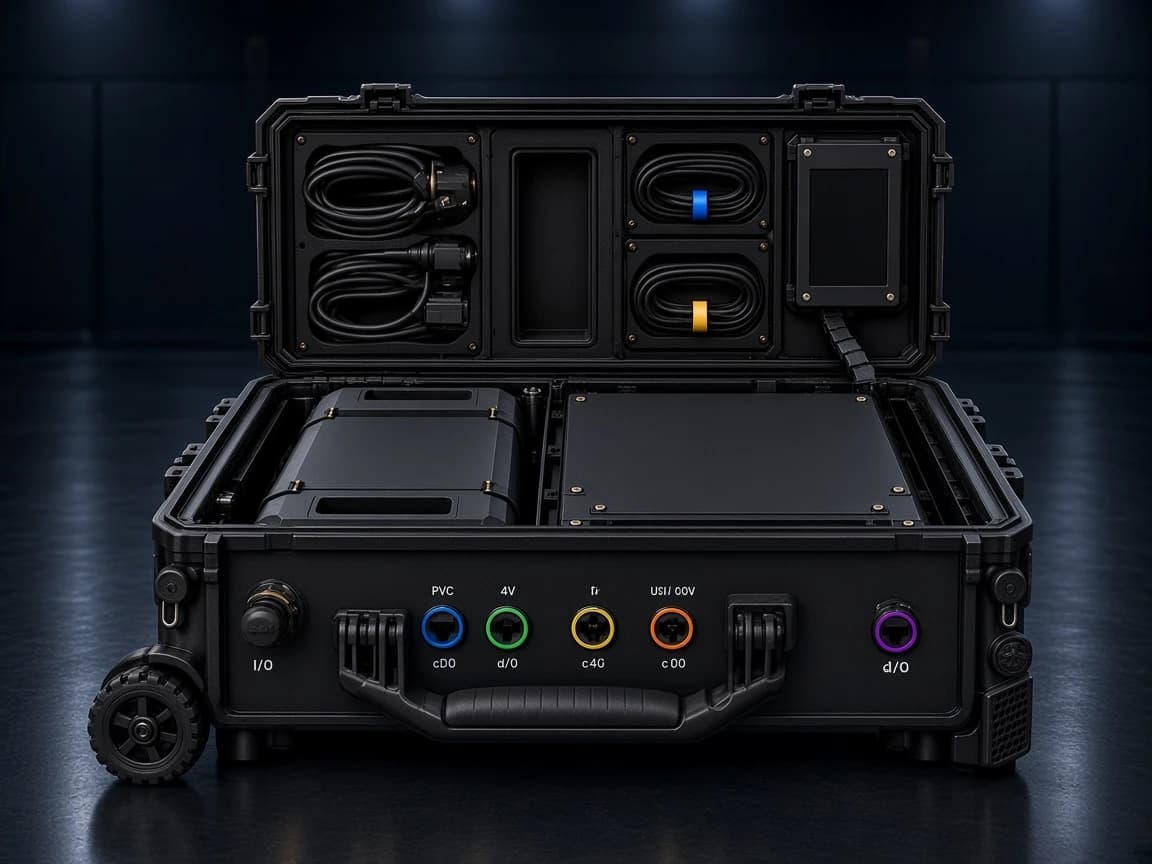

Open ConnectPoint case with battery, electronics access, lid storage, and front I/O ports
Concept illustration · monitor requires software integration. Final specifications require validation.

Lid interior

  • Regional AC cords

    EU · UK · US leads with a shared industrial case-end connector.

  • Antenna storage

    Dedicated foam bay for field antennas when the lid is sealed.

  • Cable storage

    Starlink and Fieldlink runs coiled and ready for deployment.

  • Lid display housing

    Protected recess for the monitoring display when the case is open.

Case body

  • 768 Wh battery

    Integrated BMS with a regulated 24 V bus for connected gear.

  • Electronics service access

    Sealed cover for service without disturbing the packed lid.

  • Antenna ports

    Capped exterior ports on both sides for rapid RF hookup.

  • Pressure & cooling vents

    Water-resistant membrane and rain-protected side-wall cooling.

Front I/O panel

Color-coded edge groups keep power, uplink, Fieldlink, inspection gear, and WAN input distinct at a glance.

  • Power input

    • AC IN 100–240 V

  • Starlink

    • 24 V DC OUT
    • Ethernet IN

  • Fieldlink

    • 24 V DC OUT
    • LAN OUT

  • Inspection equipment

    • LAN OUT
    • 24 V DC OUT
    • USB-A 5 V
    • USB-C 5 V

  • Internet input

    • LAN IN / WAN

Field-ready packing

Electronics closed

With electronics sealed, the case still exposes status, antennas, and front ports — while lid leads and the hybrid reel stay organized for the next job.

  1. 01

    Hybrid cable reel

    Heavy-duty drum for hybrid field cable — ready to pay out and recover.

  2. 02

    Closed electronics compartment

    Sealed metal housing for the network and power electronics stack.

  3. 03

    Separate closed Wi‑Fi storage

    Dedicated bay beneath the electronics box for Wi‑Fi hardware.

  4. 04

    Starlink connection monitor

    Status display for uplink health — software integration required.

  5. 05

    Power / Wi‑Fi / BLE indicators

    At-a-glance LEDs for power, wireless, and Bluetooth Low Energy.

  6. 06

    External BLE antenna

    Stubby side-mount antenna for nearby device pairing in the field.

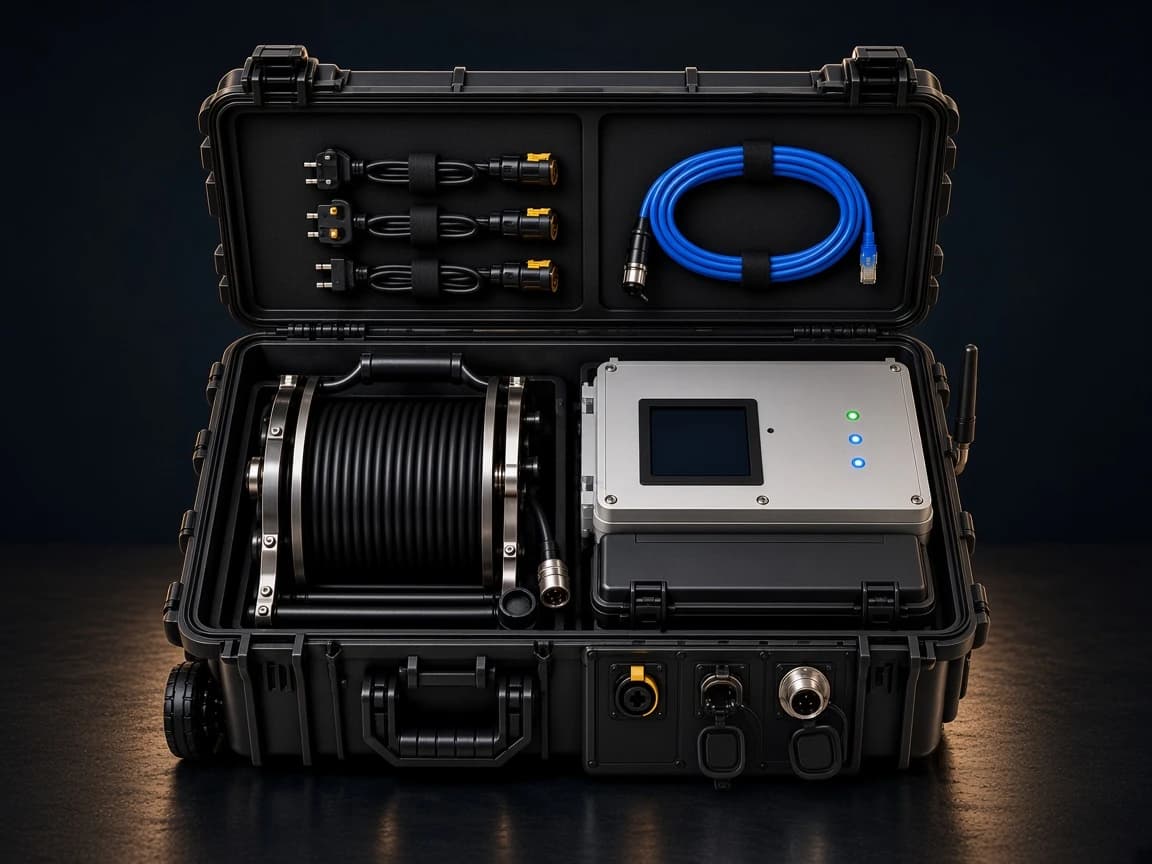

Open ConnectPoint case with closed electronics compartment, hybrid cable reel, and front ports
Concept illustration · monitor requires software integration. Final specifications require validation.

Lid packing

  • AC leads — EU / UK / US

    Regional mains leads nested in foam for international deployment.

  • 5 m CAT6 — Starlink

    Industrial RJ45 to standard RJ45 run for the Starlink path.

Front ports

  • AC input

    110–220 V AC charge and shore power.

  • Starlink Ethernet

    Protected ethernet port with dust cap.

  • Drum fiber + 54 V DC

    Hybrid circular connector for fiber and DC on the reel path.

Confined-space coverage

Temporary Tank / WiFi Setup

Strap a temporary access point inside the vessel — worker, drone, and kit stay on one local link while the hatch stays the light path out.

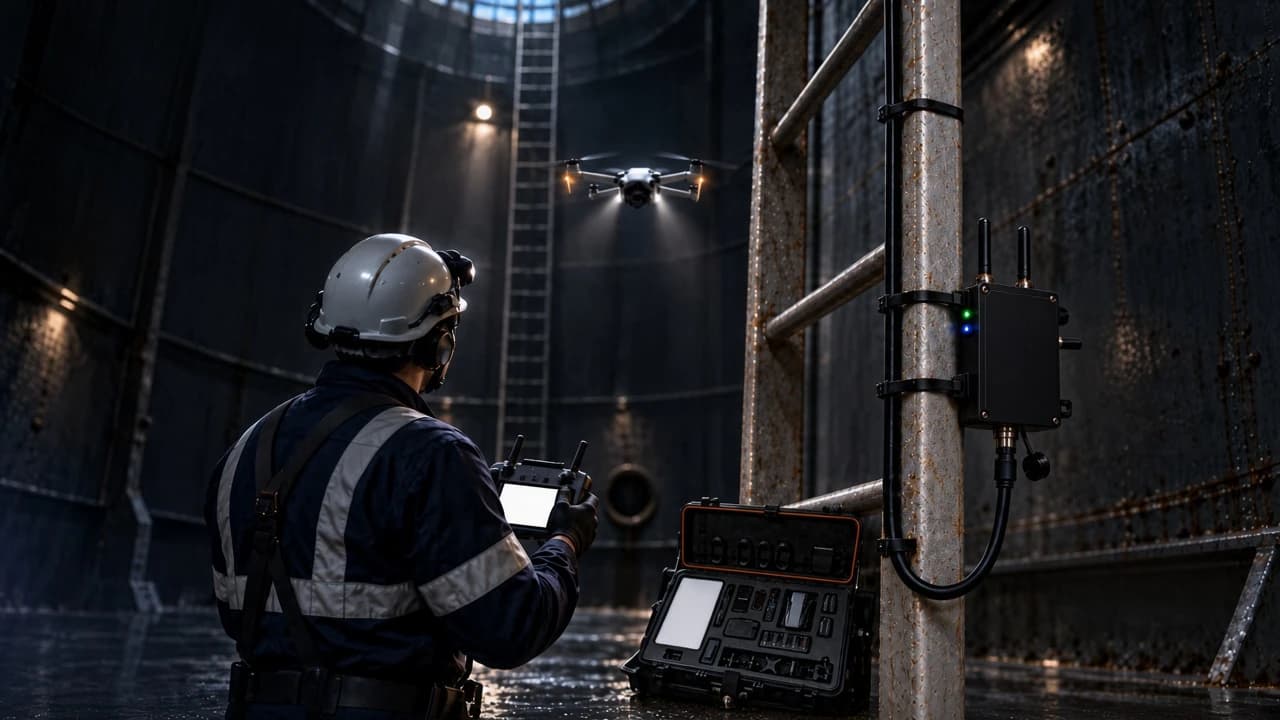

Concept scene of a temporary WiFi access point cable-tied to a tank ladder with worker and drone inside a confined vessel

Temporary tank coverage

Access point · ladder mount · hybrid cable · open field kit

Concept illustration · monitor requires software integration. Final specifications require validation.

  • Temporary attachment to ladder

    Cable ties secure the access point to ladder rail for rapid temporary coverage.

  • Cable-tied mounting ears

    Side flanges give a clean strap path without permanent fixtures.

  • Removable hybrid cable

    Industrial hybrid run plugs into the base — power and data, then pulls free.

Platform kit map

Your hardware. One connection.

Starlink connectivity. DJI and Meta today. An open API for what comes next.

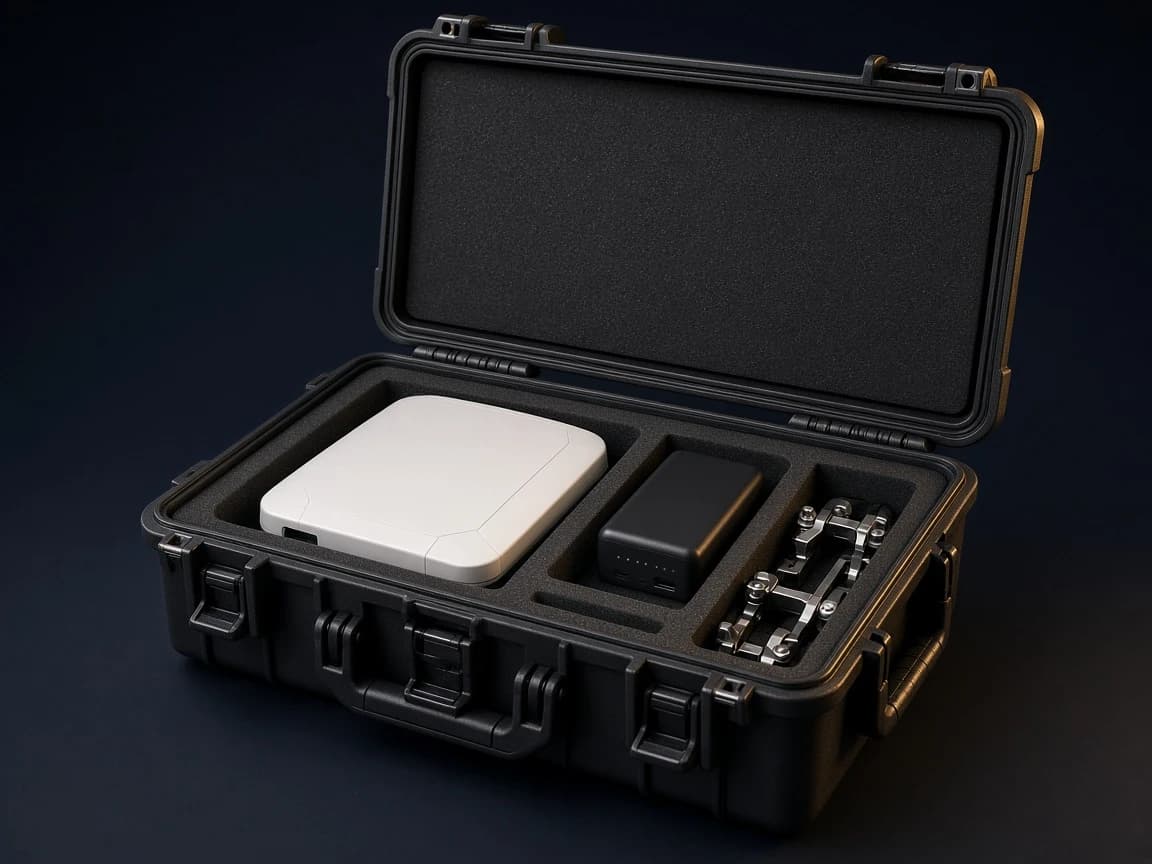

Open rugged case with satellite terminal, power brick, and mounts

Connect

Starlink Mini · Power · Mounts

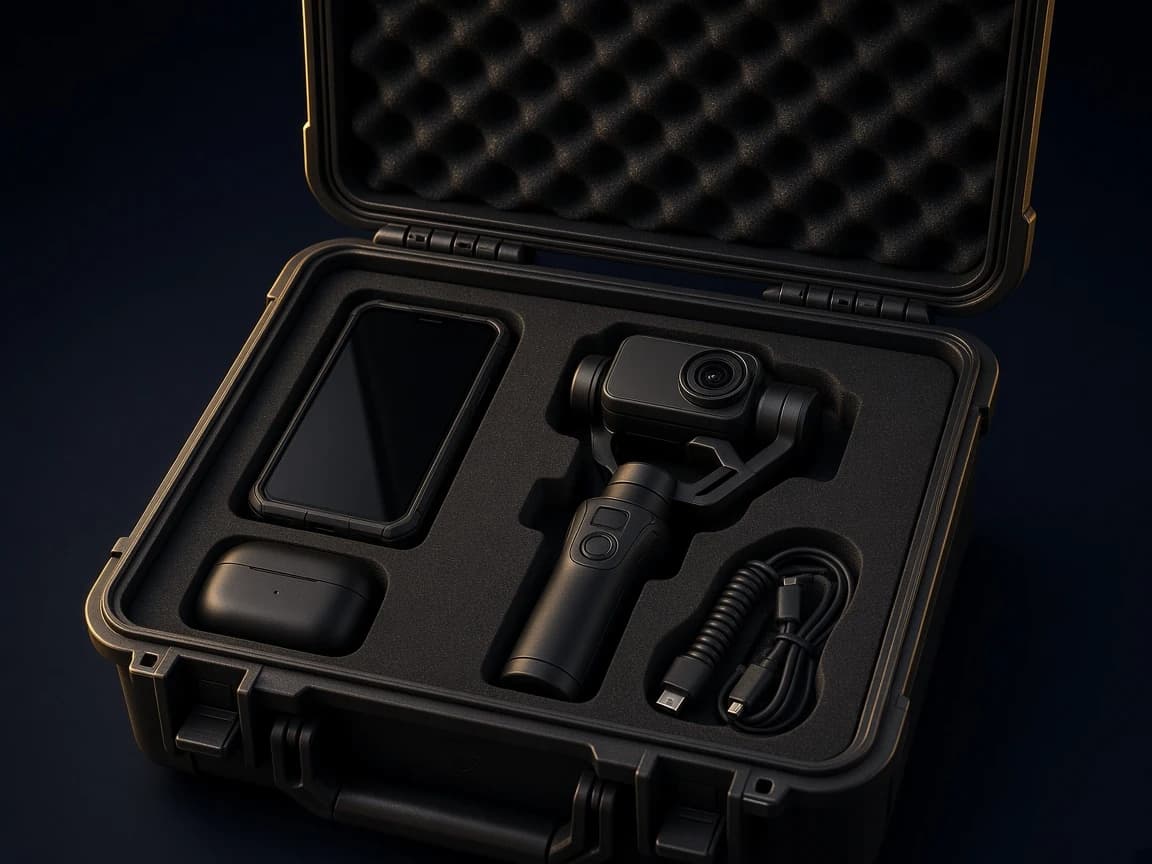

Open rugged case with phone, camera, and audio accessories

Capture

Phone · Camera · Audio · Accessories

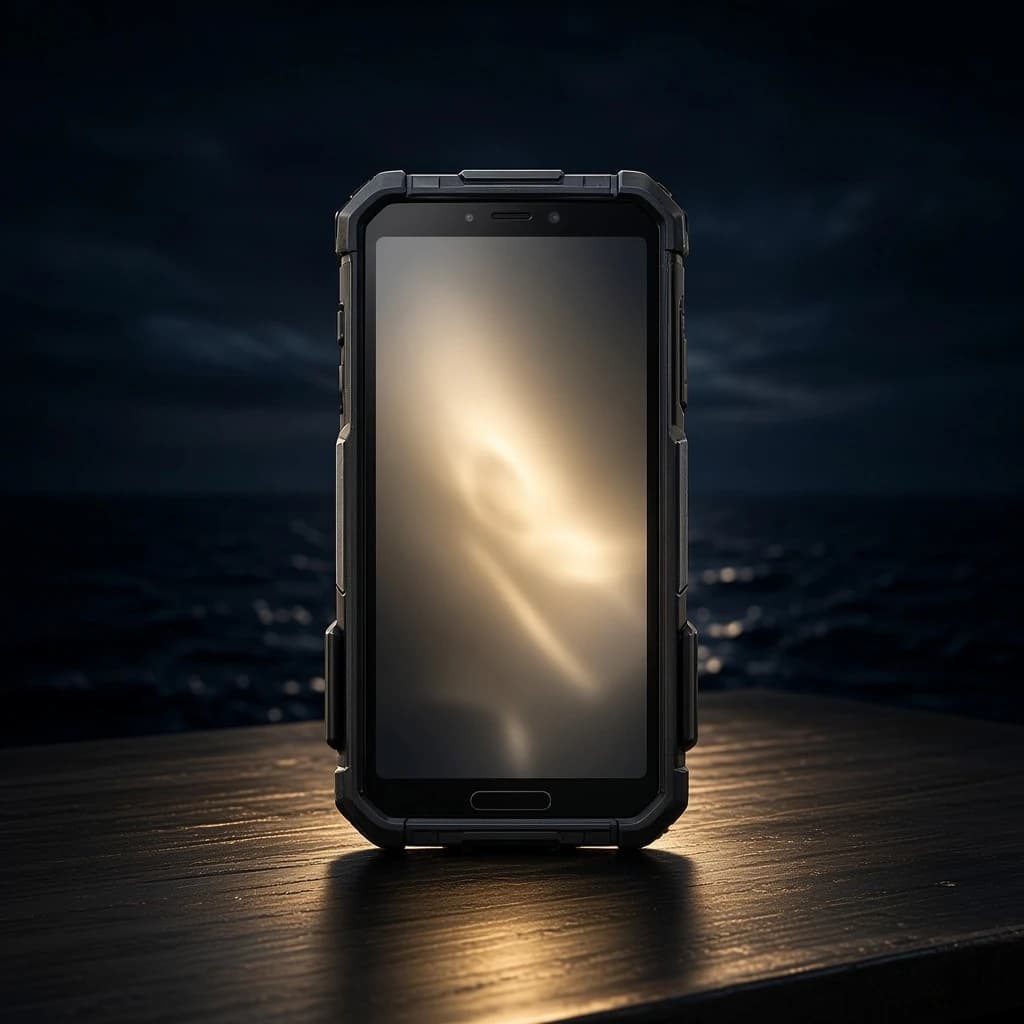

Rugged field phone representing the ConnectPoint open API hub

ConnectPoint Open API

Capture · Communication · Evidence records

Supported devices connect through the configured workflow.

Concept illustration · monitor requires software integration. Final specifications require validation.

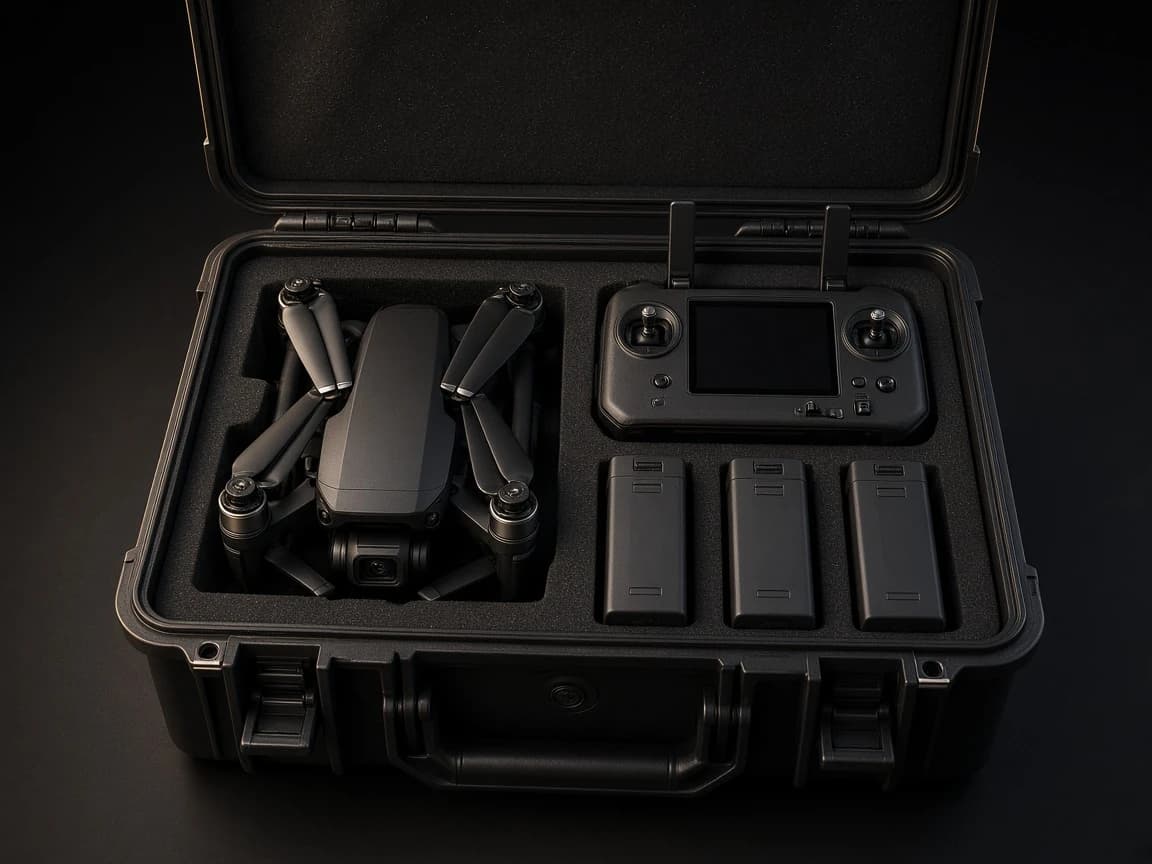

Open rugged case with inspection drone, controller, and batteries

DJI

Cameras · Drones — supports the enterprise range

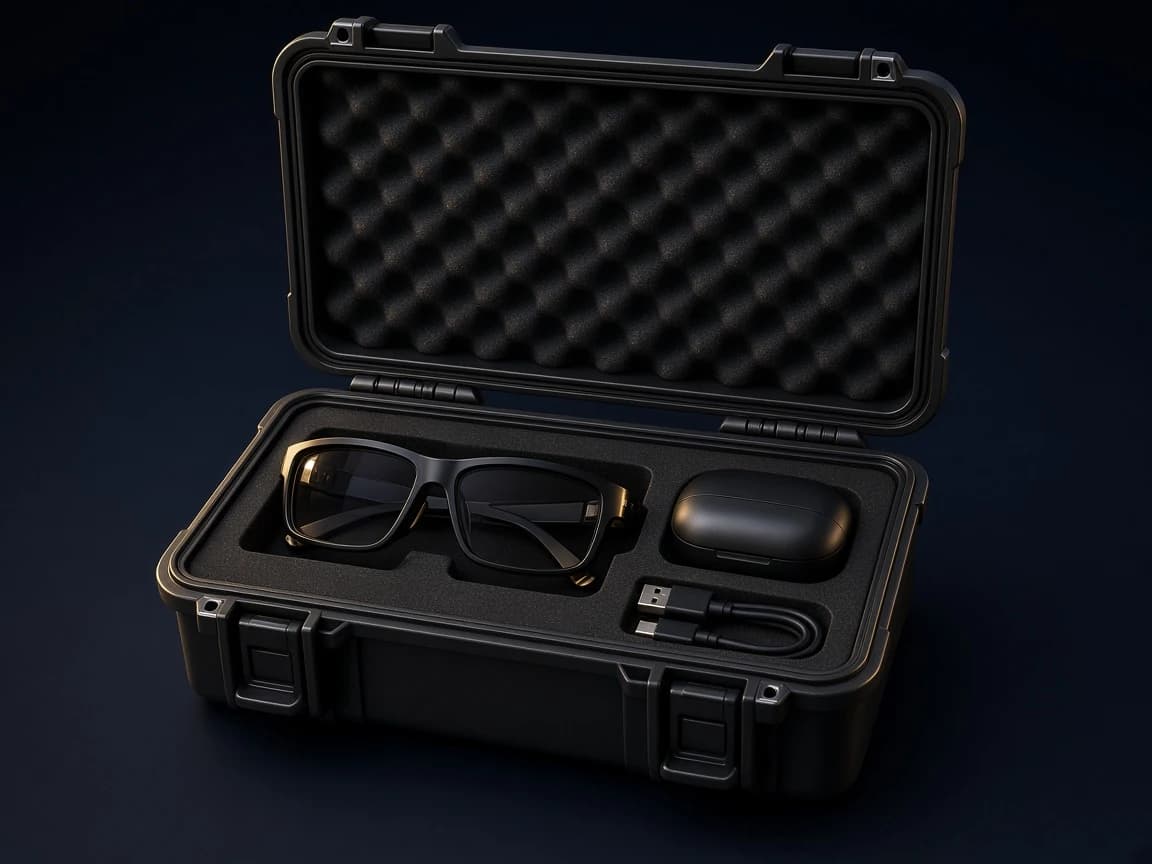

Open rugged case with smart glasses and charging accessories

Meta

Smart glasses

Evidence chain · architecture map

Field capture to sealed evidence

Modular product boxes, connected in gutters: on-body capture → Wi‑Fi hub → Starlink → satellite → server → sealed record for remote viewers.

Dedicated inspection network

Independent of vessel IT / OT networks

Architecture intent: keep survey traffic on ConnectPoint’s own path — not bridged into ship systems.

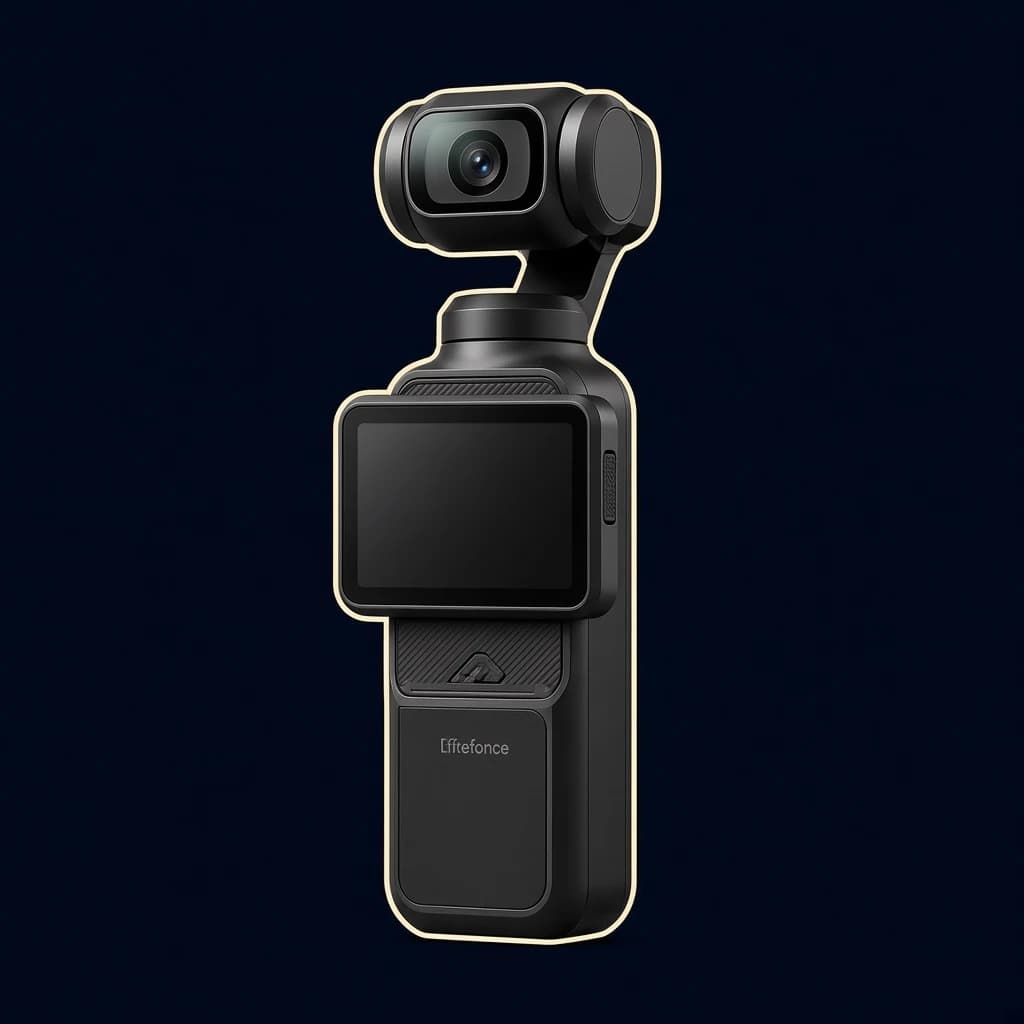

Handheld gimbal pocket camera

Pocket 4

  • Handheld gimbal capture
  • Local video to rugged phone

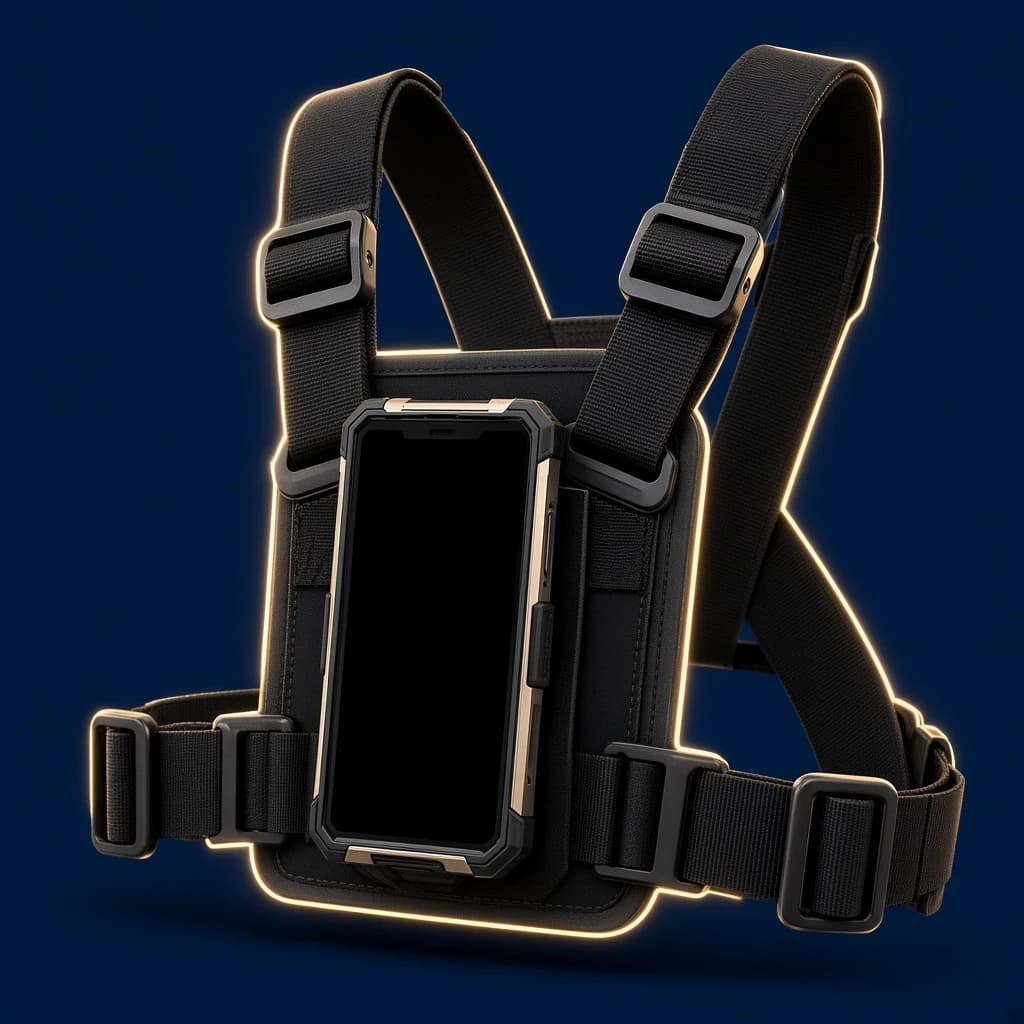

Rugged smartphone in chest harness

Rugged phone

  • Chest-mounted field hub
  • Kiosk workflow · on-body bridge

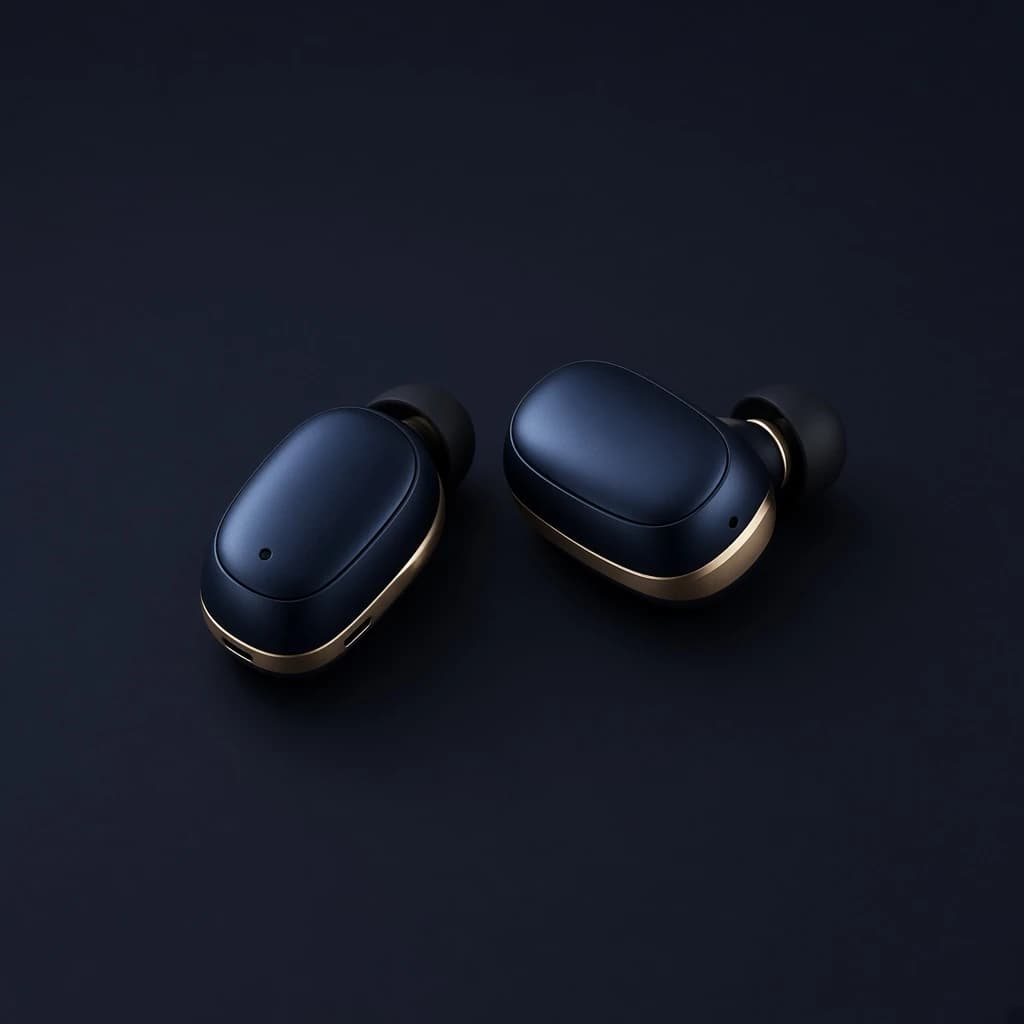

Wireless earbuds for two-way audio

Two-way audio

  • Earbuds for remote talkback

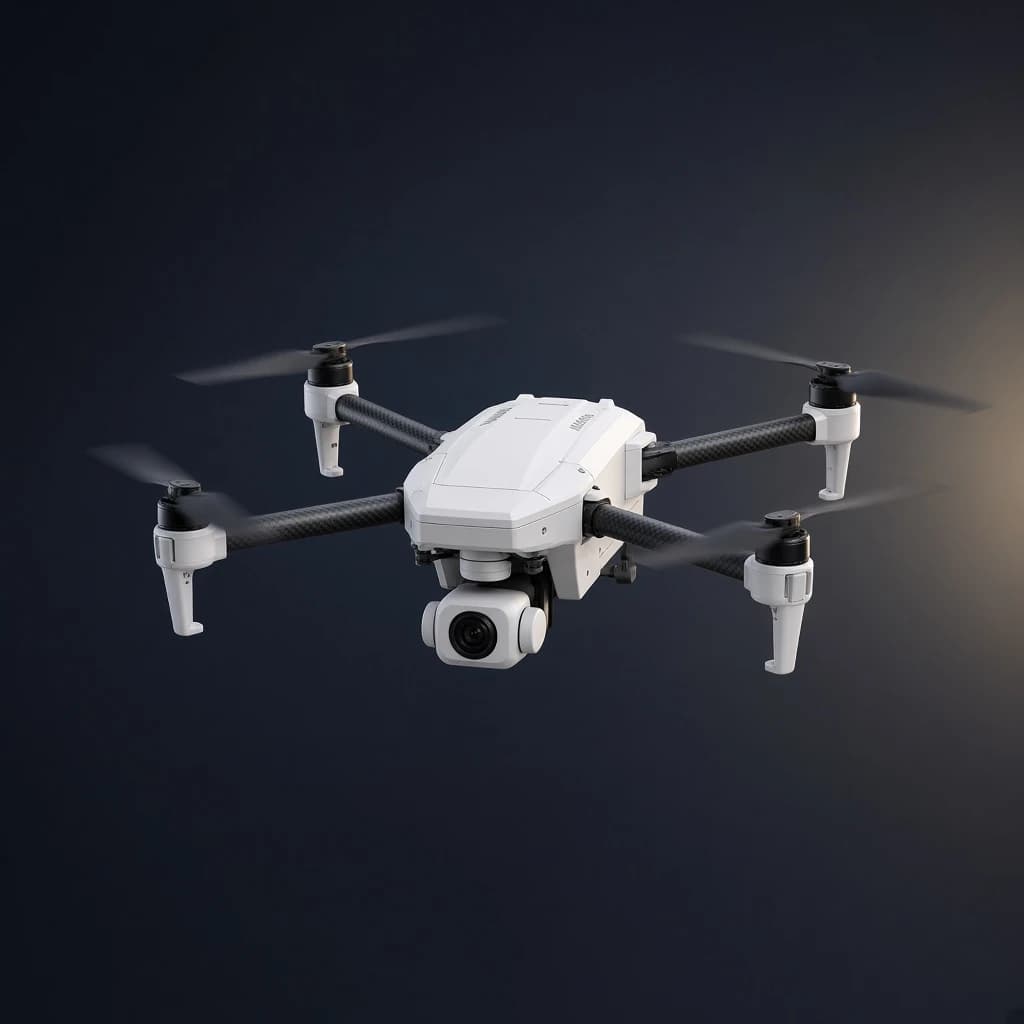

Inspection drone

Drone / sensors

  • Camera, drone or other sensors

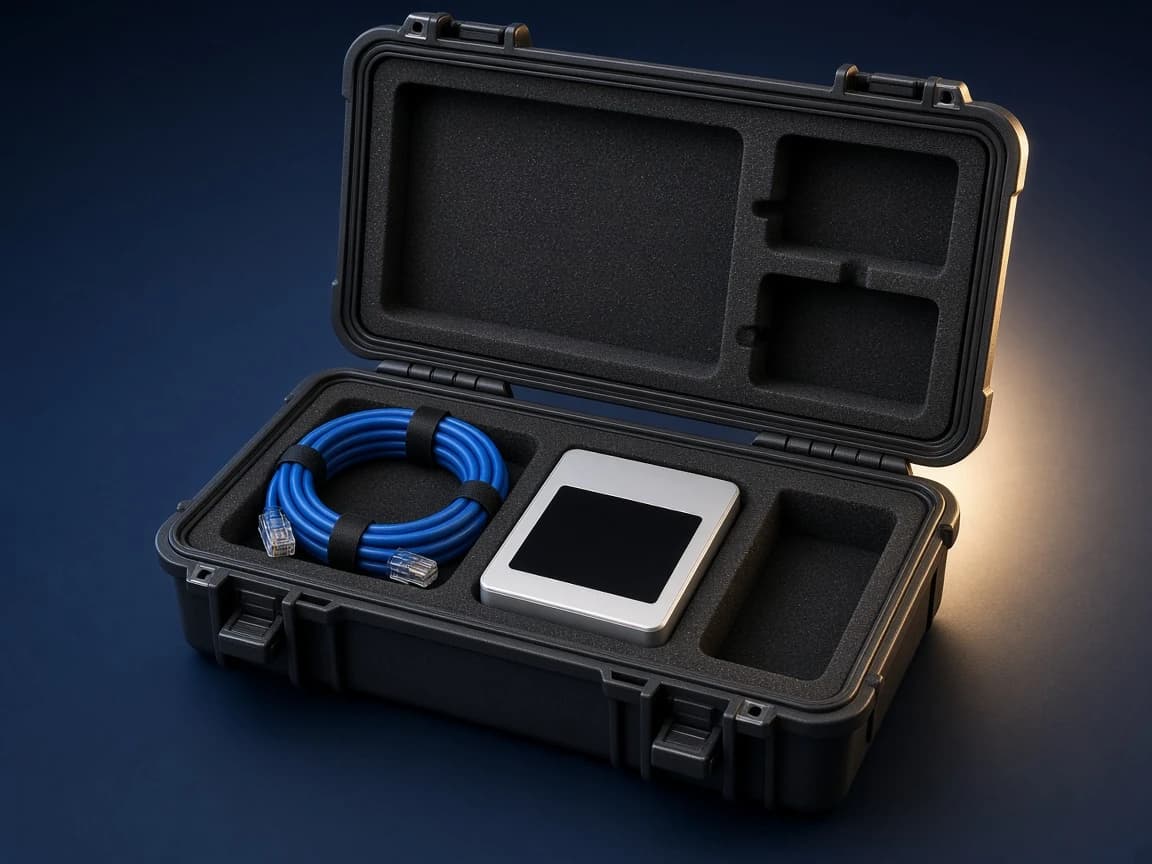

Open rugged electronics case hub

Electronics case · hub

  • Dedicated inspection network hub
  • Local Wi‑Fi · Starlink path · power

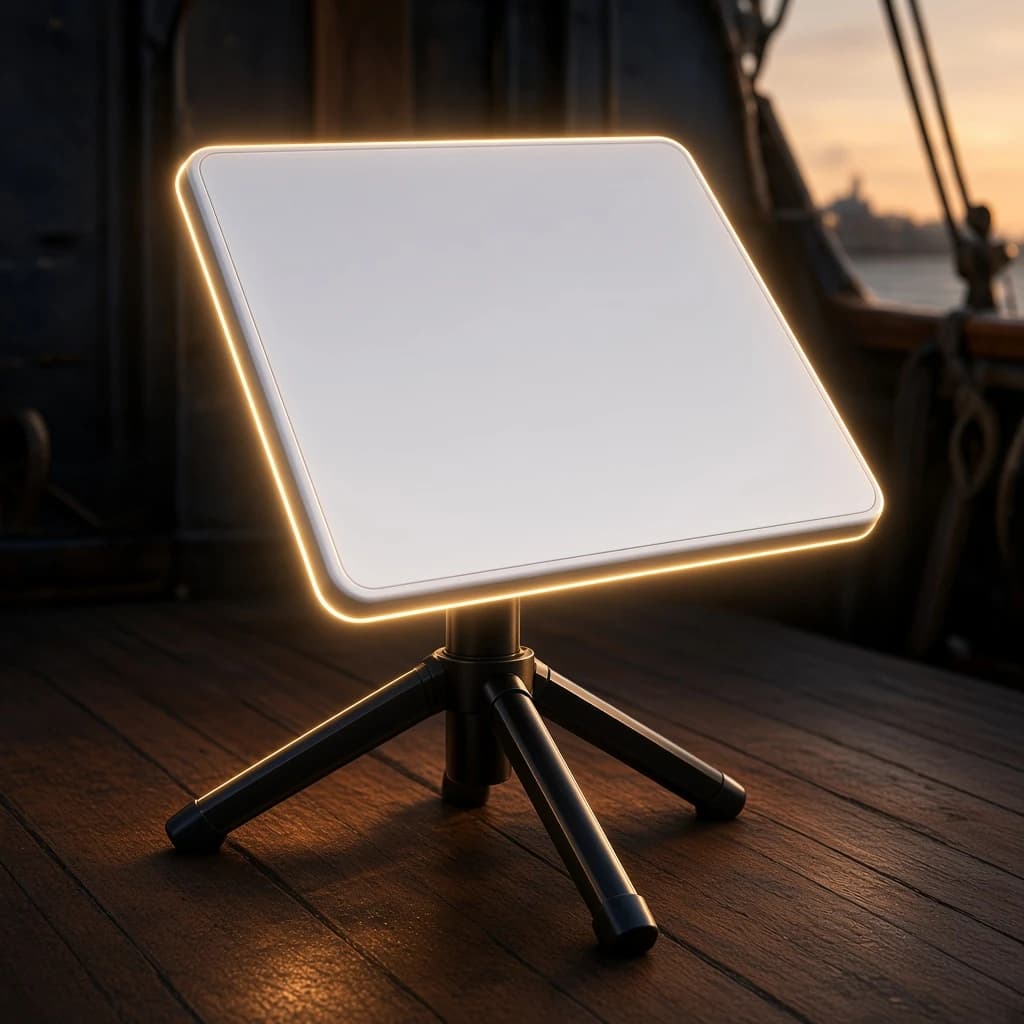

Flat-panel satellite terminal on tripod

Starlink terminal

  • On-deck uplink for the inspection path
Communications satellite in orbit

Communications satellite

  • Space segment relay
Ground gateway cloud icon

Ground gateway

  • Internet edge into ConnectPoint

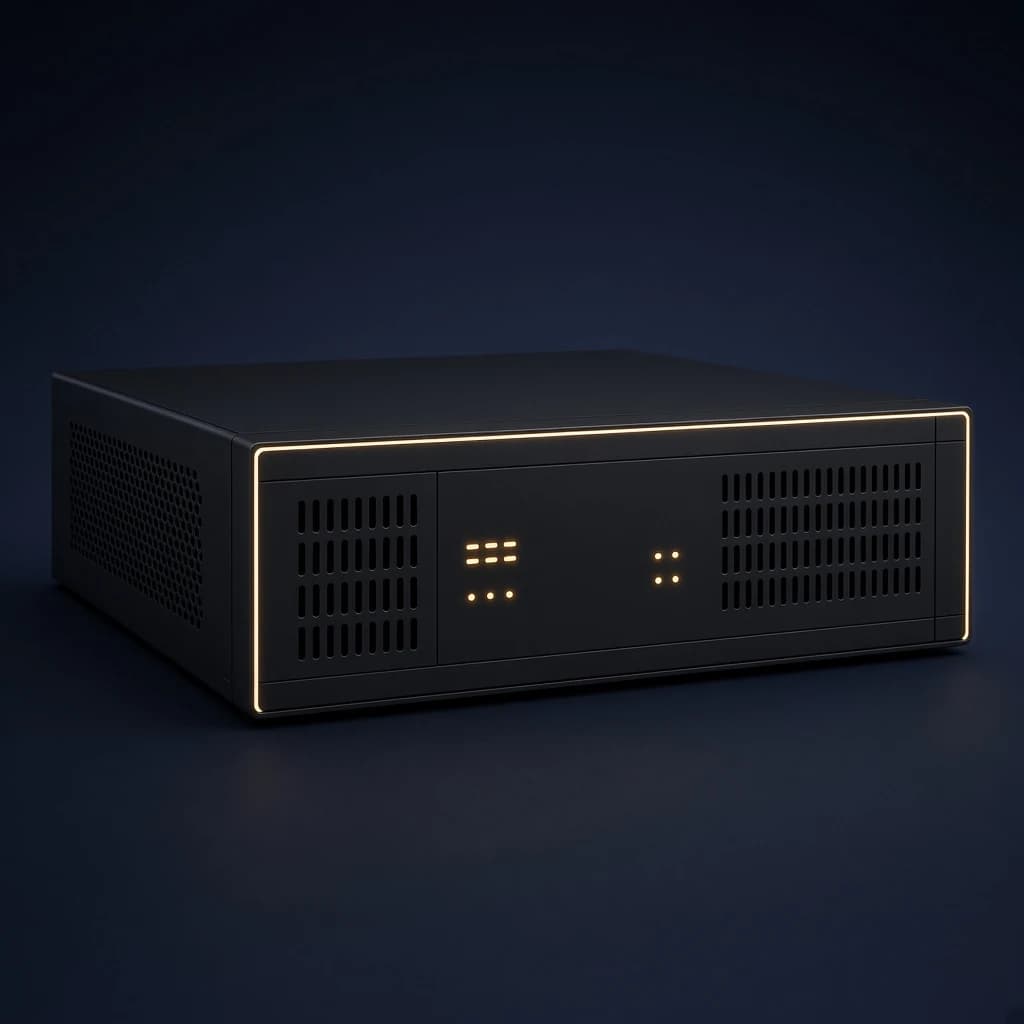

Rack-mounted server unit

ConnectPoint server

  • TLS 1.3 · access control · audit trail — design targets
Sealed document folder with padlock

Sealed evidence

  • Signed manifest · trusted timestamp — architecture intent
Remote operators reviewing inspection media

Multiple remote participants

  • Alarm center · shipowner · class · insurer · supplier · buyer

Safeguards across the evidence chain

Equivalent survey assurance · intent

Remote classification needs the same care as on-site survey. Follow the product-box safeguards path — device, link, server, sealed record — as design direction, not certified claims.

Rugged phone representing the intended device security stack

Field device stack

  • Knox Manage · MDM policy direction
  • Kiosk mode · workflow lock intent
  • Device attestation · integrity before trust
  • Hardware-backed keys · outside app storage
Connectivity hub hardware

Connectivity path

  • Mobile data or available Wi‑Fi — whichever the site allows
Cloud / internet gateway

Cloud / internet

  • Path into ConnectPoint services
ConnectPoint server

ConnectPoint server

  • TLS 1.3 · access control · audit trail — design targets
Sealed evidence with padlock

Sealed evidence

  • Signed manifest · trusted timestamp — soft intent
Remote participants reviewing sealed inspection media

Multiple remote participants

  • Class · owners · insurers · suppliers — viewers of the record
Support agent at workstation

ConnectPoint support

  • Knox Remote Support · E‑FOTA — soft ops path
