ConnectPoint is software. It runs on standard equipment from Samsung, DJI and Starlink. The only hardware we make ourselves is the mobile Wi-Fi point for tanks and holds.

Patent Pending NO 20261081Designed to support IACS UR Z29Standard 24 V Regulated Bus
Field Unit V2
IP67 Sealed
Zone Link kit: the hub case, the cable reel and the Zone Point, connected by the hybrid cable

Live Status Display

Lid Telemetry & 5 Connector Groups

RESERVE BUS
Battery100% · 24.2 V
UplinkStarlink Ready
Load38 W Active
SPEC 01

768 Wh

LiFePO4 Reserve

Regulated 24 V bus with integrated BMS

SPEC 02

Multi-WAN

Starlink & Wi-Fi

Dual high-gain radios + satellite uplink

SPEC 03

5 I/O groups

IP67 Mil-Spec

Weatherproof capped industrial connections

SPEC 04

24.5 kg

Flight Target

Rugged case designed for air transport (airline rules depend on battery size)

01 / CORE FIELD INFRASTRUCTURE

Portable Network & Power Hub

A self-contained offshore mission hub engineered inside a rugged rolling enclosure. Delivers autonomous satellite connectivity, regulated 24 V bus power, and all-weather industrial interconnectivity without requiring platform shore power.

Internal Component Schematic
Target Mass: 24.5 kg
Power Case 24 V, open: the 24 V cable and the battery monitor in the base, the EU, US and UK mains cables in the lid
Open Architecture ReviewDual Radios + BMS Monitored

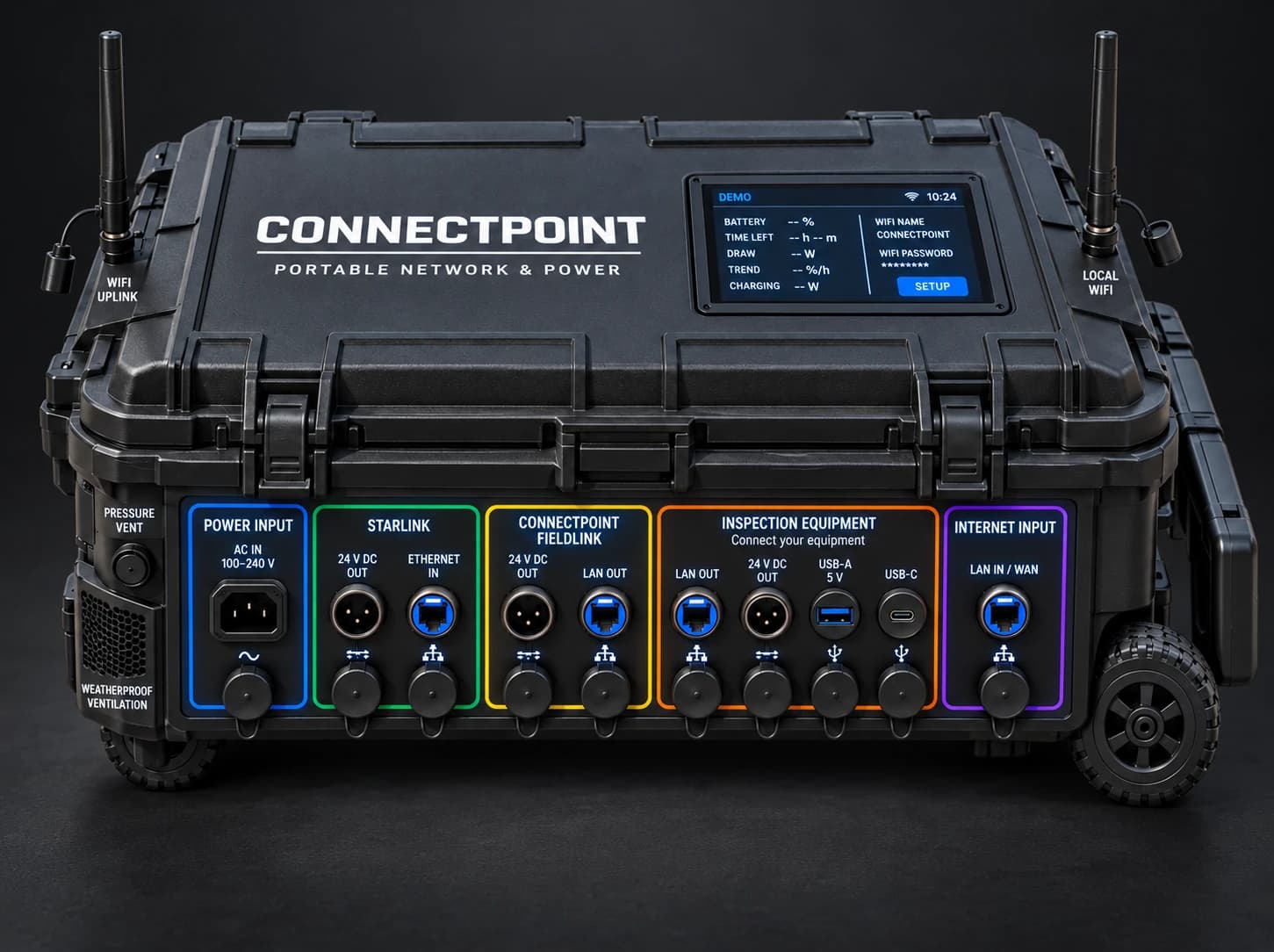

Front Panel Industrial Matrix (IP67 Capped)

1. Power Input

AC IN 100–240 V

2. Starlink

24 V DC OUT + LAN IN

3. FieldLink

24 V DC OUT + LAN OUT

4. Inspection I/O

LAN, 24 V, USB-A, USB-C

5. Internet Input

LAN IN / WAN

768 Wh LiFePO4SUBSYSTEM 01 OF 03

Isolated Battery & Universal Charging System

A ruggedized LiFePO4 chemistry battery pack with an integrated Battery Management System (BMS). Paired with an isolated 100–240 V AC universal charger and load sharing to ensure safe, uninterrupted operation.

Engineering Highlights:

768 Wh LiFePO4 pack with sealed enclosure
Universal 100–240 V AC 50/60 Hz power input
Direct 24 V DC regulated bus + 230 V AC inverter
Dedicated 24 V → 12 V and 5 V USB-C step-down modules

Weatherproof Ventilation & Pressure Balance

Rain-protected side vents paired with water-resistant membrane pressure valves prevent internal vacuum during altitude changes.

02 / RAPID TURNAROUND CHARGING

Active Thermal Docking Station

Rapid turnaround between offshore shifts. Built into a Peli 1550 chassis, combining multi-device charging rails with an active filtered airflow path to prevent thermal throttling in tropical and engine-room environments.

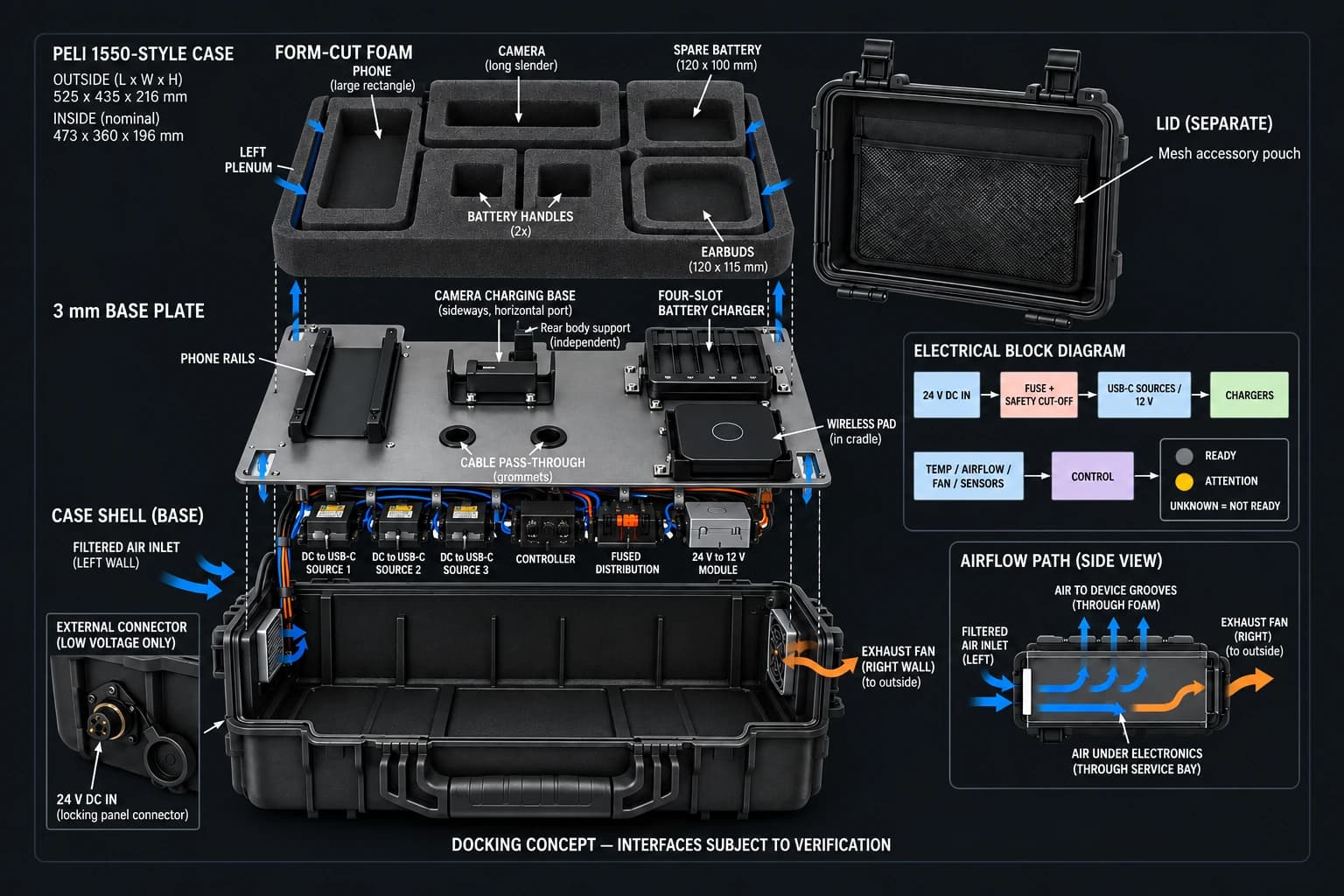

Exploded Architecture & Airflow
External 24 V DC Locking
Operator Kit, open: the phone, the camera with its battery handles, the earbuds, spare phone batteries and the charger in form-cut foam, cables in the lid
Filtered Air Intake (Left) → Chassis Sub-BayExhaust Fan (Right)

Outside Dim

525 × 435 × 216 mm

Inside Dim

473 × 360 × 196 mm

Base Plate

3 mm CNC Aluminum

Input Power

24 V DC Locking

Tier 2 · Integrated Multi-Device Charging StationPeli 1550 module

3 mm CNC aluminium base plate

Precision-machined structural base plate with phone retaining rails, a horizontal camera charging cradle with rear body support, a 4-slot high-speed battery charger, and an inductive wireless charging pad.

Structural & Electrical Layout:

Phone retaining rails
4-Slot battery charging bay
Sideways camera charging dock
Wireless pad cradle & grommets

Closed-Loop Electrical Safety Cut-Off

Fused distribution matrix with temperature and airflow sensors. Automatic overload protection.

READYATTENTION

03 / CONFINED SPACE WI-FI

Wi-Fi inside steel tanks & Spatial Beacons

Overcoming the two harshest physical barriers in maritime inspection: impenetrable steel Faraday cages in cargo tanks, and total GPS loss in deep ship holds.

Tank Wi-Fi AP Enclosure
Zone Point (ZL-WX-001): the Wi-Fi unit with two antennas, fed by the hybrid cable

ConnectPoint Tank AP

“Online where you never thought possible.”

Wi-Fi inside steel tanks, carried in by hybrid cable.

Deploys inside double-bottom ballast tanks, cofferdams, and cargo holds. Engineered with an isolated internal carrier PCB, dual high-gain articulating antennas, and an industrial weatherproof quick-disconnect gland.

Signal carried in by hybrid cable
Multi-Band Diversity Antennas
Power & Link Telemetry LEDs
Tool-less Quick-Disconnect Gland
INTERFACE: Shielded RJ45 + 24 V DCRUGGED ENCLOSURE
Beacon kit – 50 beacons
USD 5,000
Beacon kit: ConnectPoint BLE beacons in their box

50 BLE beacons

Precision rolling transit kit with high-contrast optical facets for spatial verification

Ground-Truth Spatial Coordinates in GPS-Denied Holds

50 BLE beacons that bind each recording to a fitted reference point on board. USD 5,000. Signed-beacon version: patent pending (NO 20261081), in development.

High-Luminance Optical Facets
Recessed Central Anchor Point
Heavy-Duty Rolling Transit Shell
Cryptographic Evidence Binding
KIT: 50 BLE beaconsSIGNED VERSION: IN DEVELOPMENT

04 / TACTICAL MOBILITY & VERIFICATION

Operator Mobility & The Delivery Chain

From capture on standard equipment to class society review ashore. ConnectPoint software binds live sessions, wireless transport and checkable sealed records.

Body-Worn Phone Mount
Operator Kit: the phone, the chest mount, the camera and the earbuds in their case

Hands-Free Operational Freedom

Spring-damped swivel bracket holds the inspection phone securely while navigating ship ladders and vertical scaffolding.

Modular vest attachment
Direct shielded tether to wearable radio pack
END-TO-END EVIDENCE PIPELINE

How field data becomes a sealed, checkable record

01

Hands-Free Field Capture

DECK & HOLD

Inspectors wear hands-free chest rig terminals with rugged mobile devices, ATEX-version cameras (designed, coming) and spatial beacon markers.

02

FieldLink & Tank Mesh

Encrypted low-latency local streaming through confined-space Wi-Fi access points directly to the central ConnectPoint Field Hub.

03

Autonomous Multi-WAN

GLOBAL UPLINK

The Field Hub routes dual-stream video and sensor metadata over Starlink satellite uplinks to shoreside stakeholders worldwide.

04

Sealed Evidence Record

PATENT PENDING

Every file – video, audio and beacon data – is hashed and sealed into a tamper-evident record, so later changes can be detected.

Commercial timeline

Tested on land. Shipboard pilot January–February 2027. Sales open February 2027. First deliveries August 2027. Pre-orders accepted without obligation.

Ready to Try
the equipment?

ConnectPoint is software. It runs on standard equipment from Samsung, DJI and Starlink. The only hardware we make ourselves is the mobile Wi-Fi point for tanks and holds.

Patent Pending NO 20261081 · Designed to support IACS UR Z29
